Research : Basic Experiment

thumbnail 1
thumbnail 2
thumbnail 3
thumbnail 4
thumbnail 5
thumbnail 6

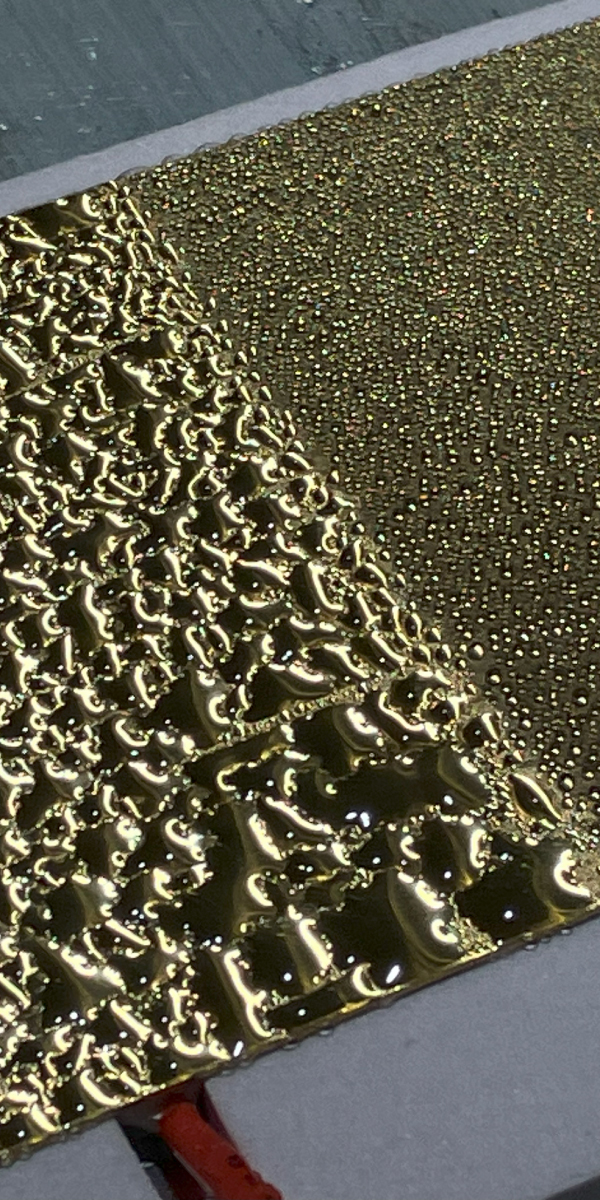

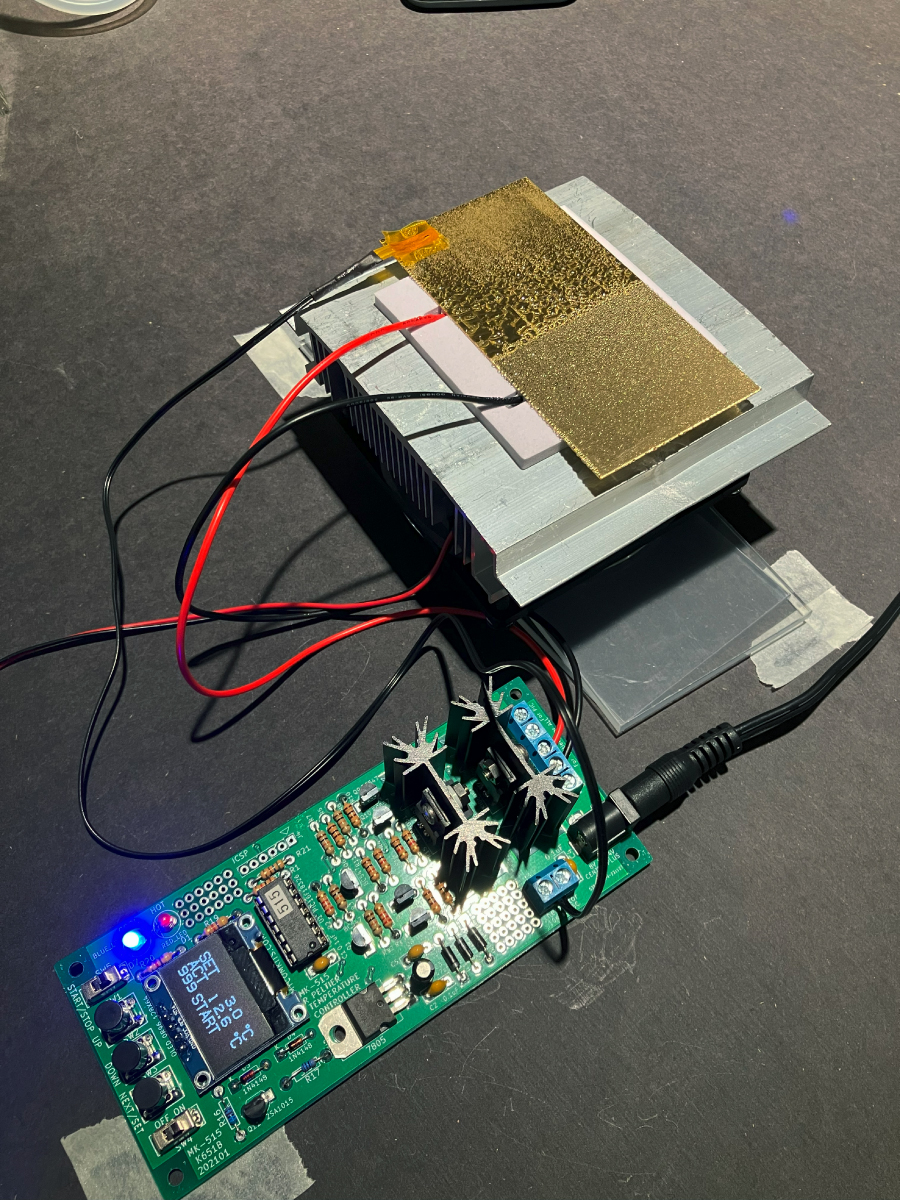

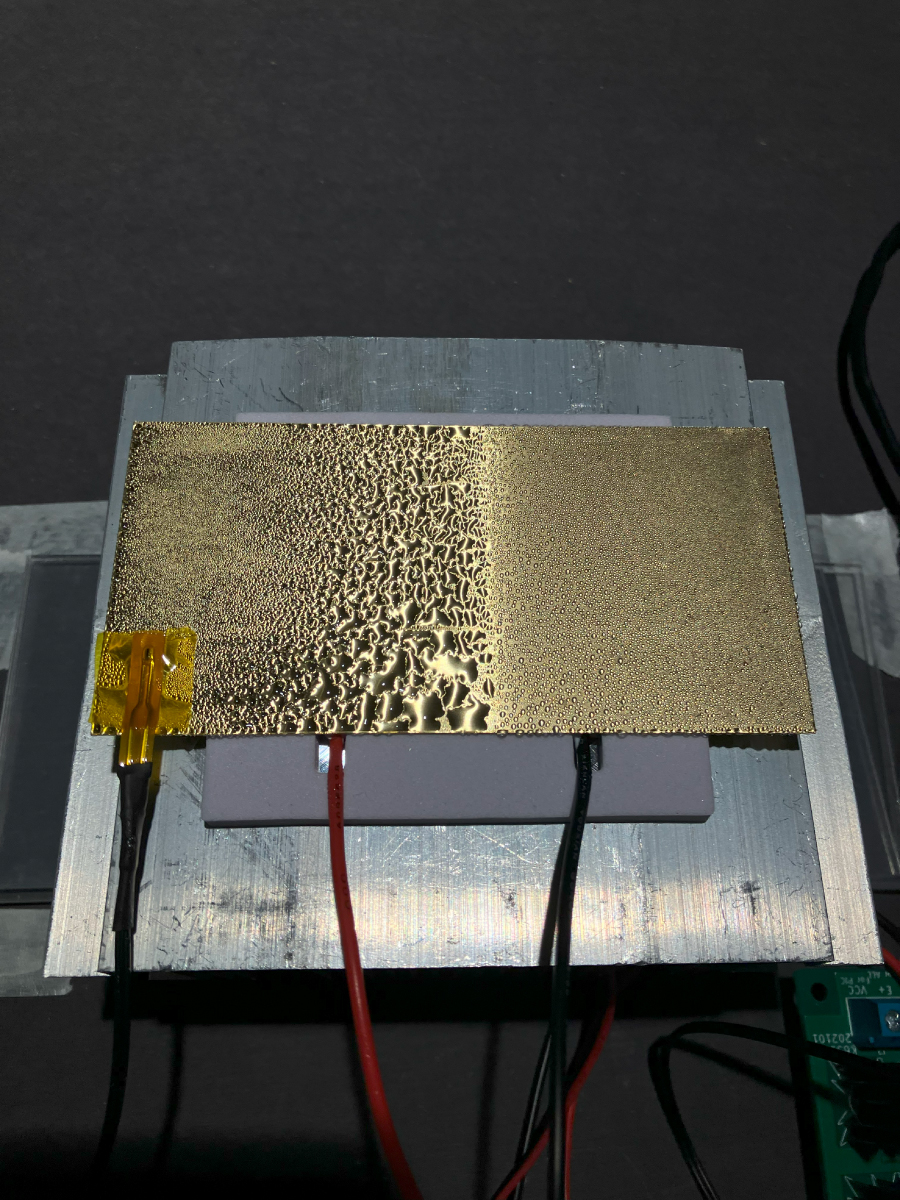

Test.1

test1 image1
[Condition]
T = 23 ℃
RH = 28 %
t = 60 min
Material: Brass
Dimensions: 50 x 100 mm
Thickness: 0.3 mm
Surface: Water-repellent coating applied to one half only
test1 image2

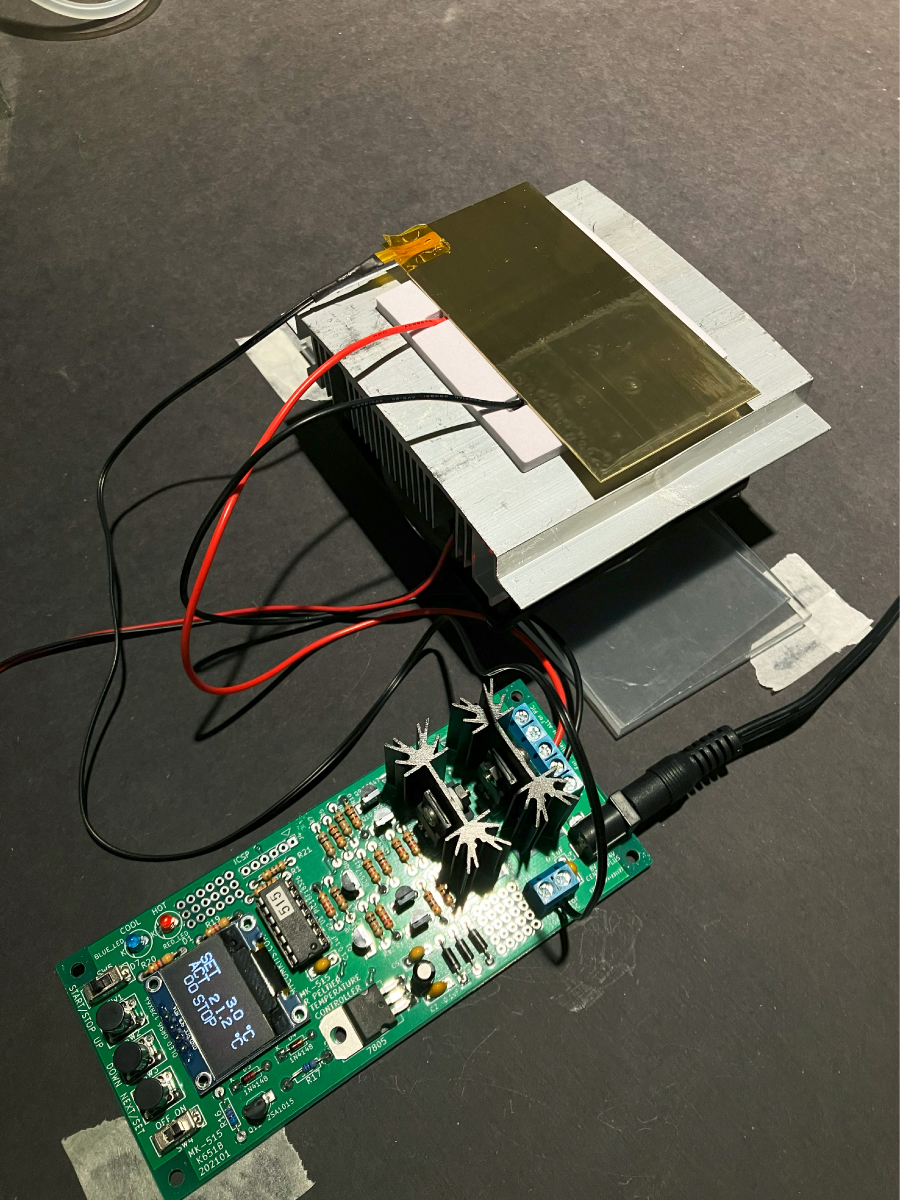

test1 image3
test1 image4
t = 0 min, 60 min

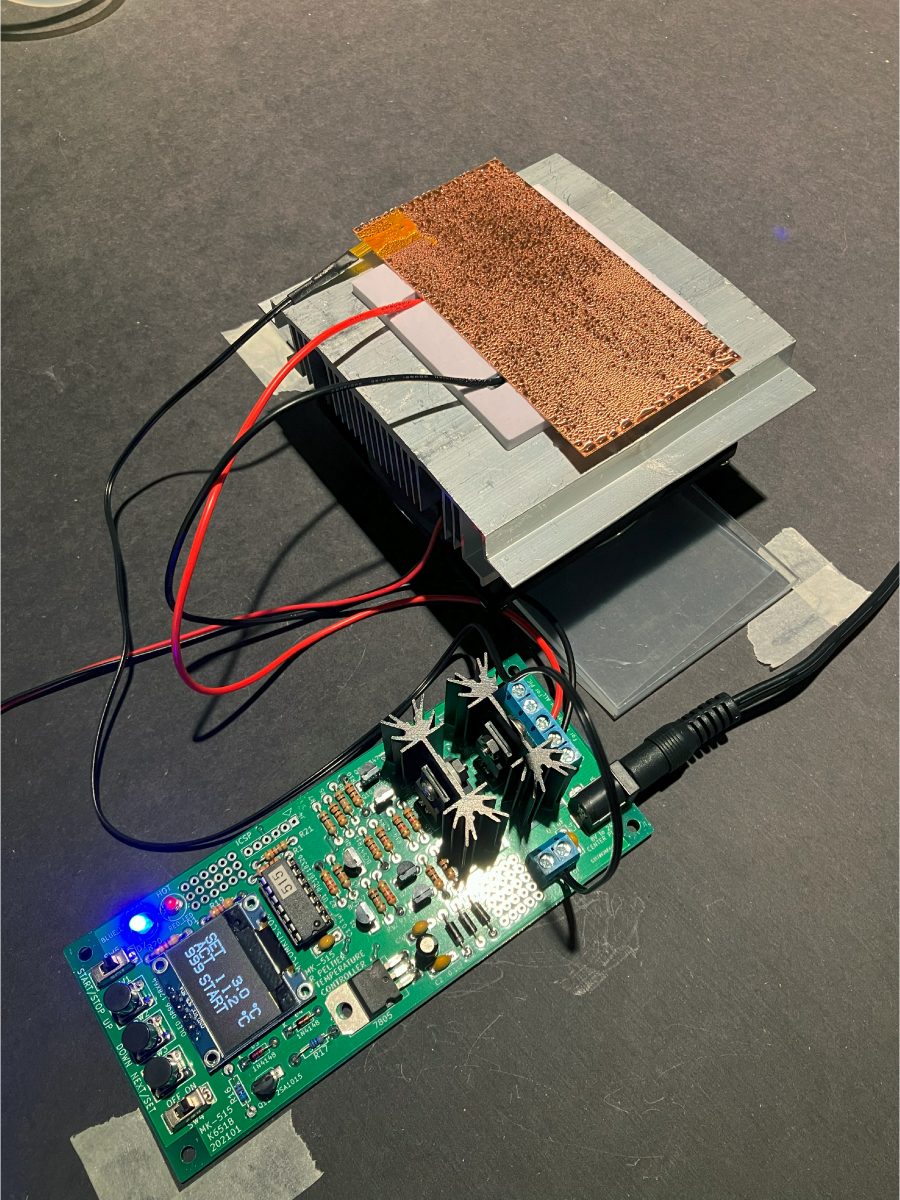

Test.2

test2 image1
[Condition]
T = 22 ℃
RH = 30 %
t = 60 min
Material: Copper
Dimensions: 50 x 100 mm
Thickness: 0.3 mm
Surface: Gloss

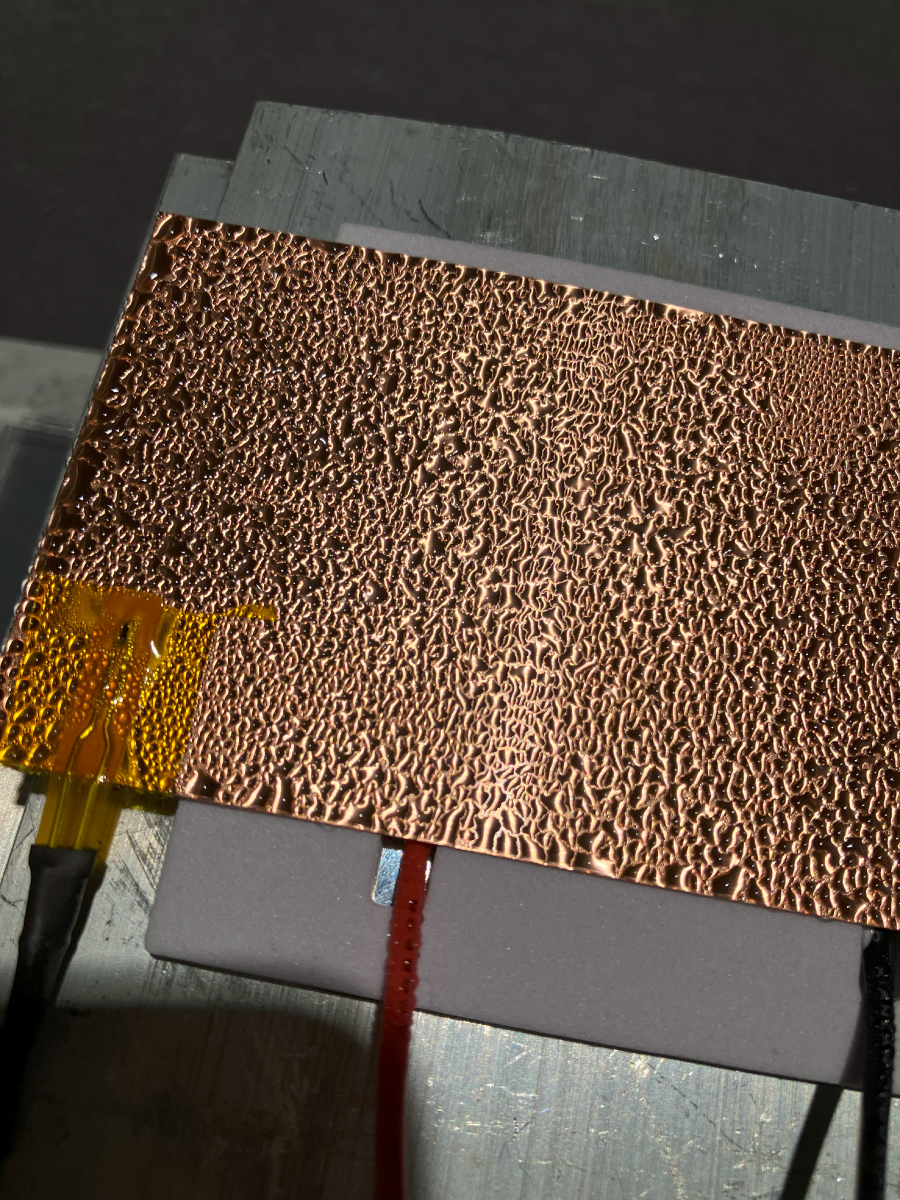

test2 image2

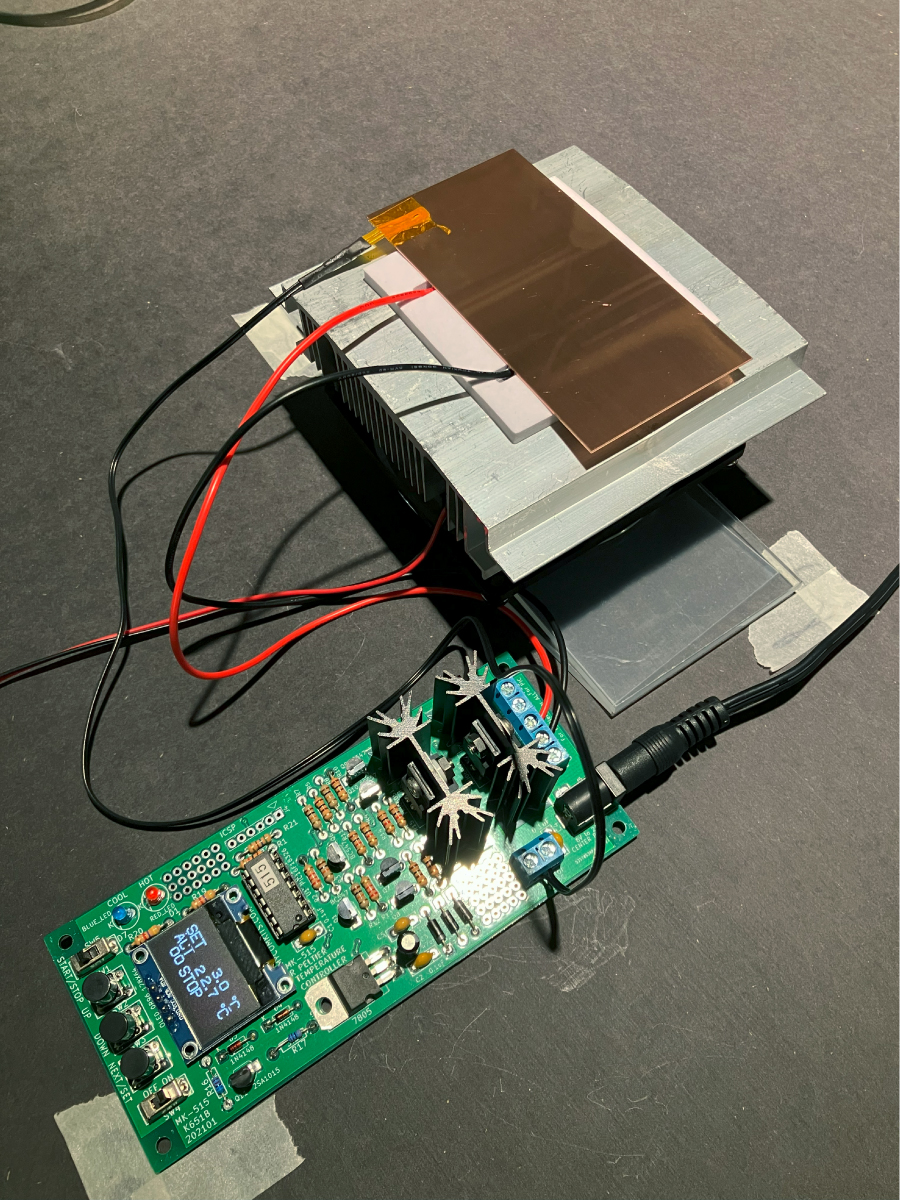

test2 image3
test2 image4
t = 0 min, 60 min

Test.3

test3 image1
[Condition]
T = 22 ℃
RH = 33 %
t = 60 min
Material: Acrylic
Dimensions: 50 x 100 mm
Thickness: 3 mm
Surface: Gloss

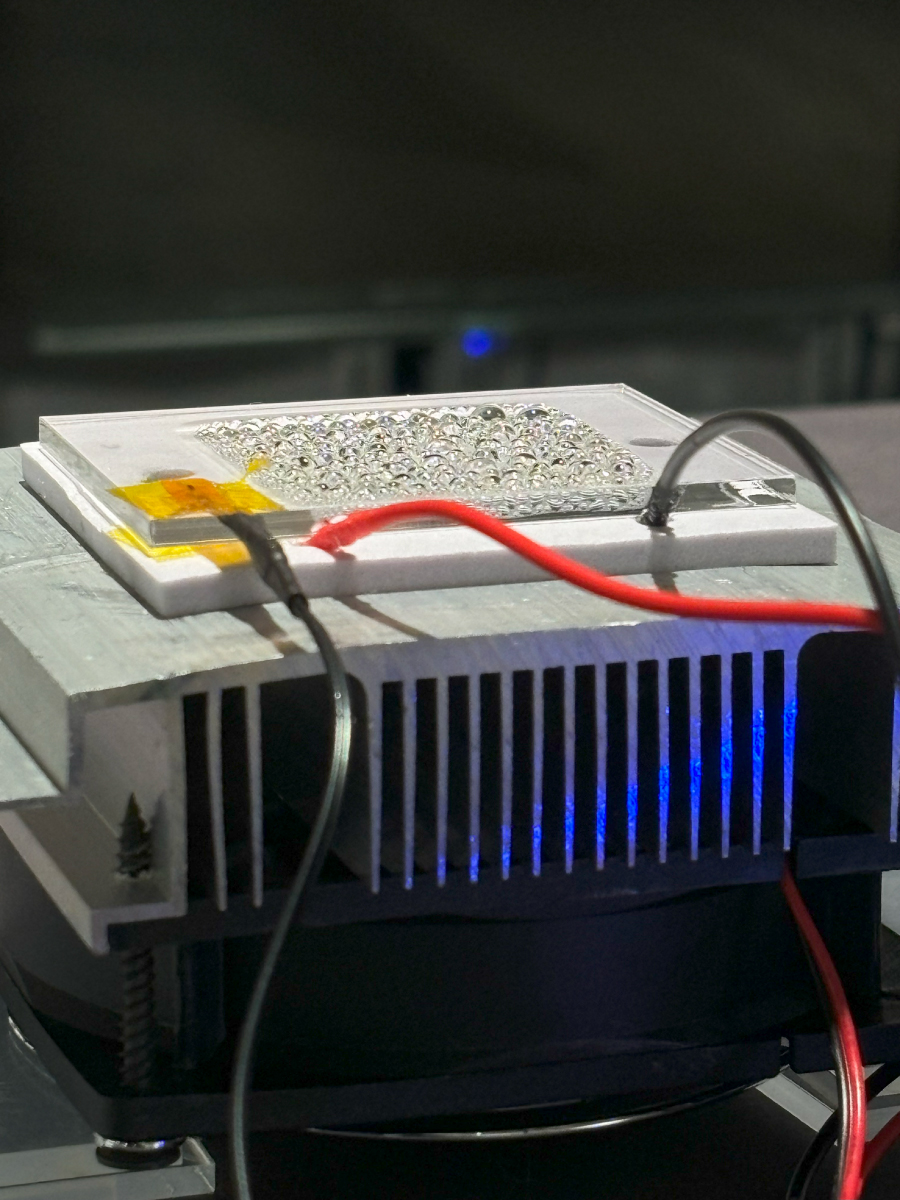

test3 image2

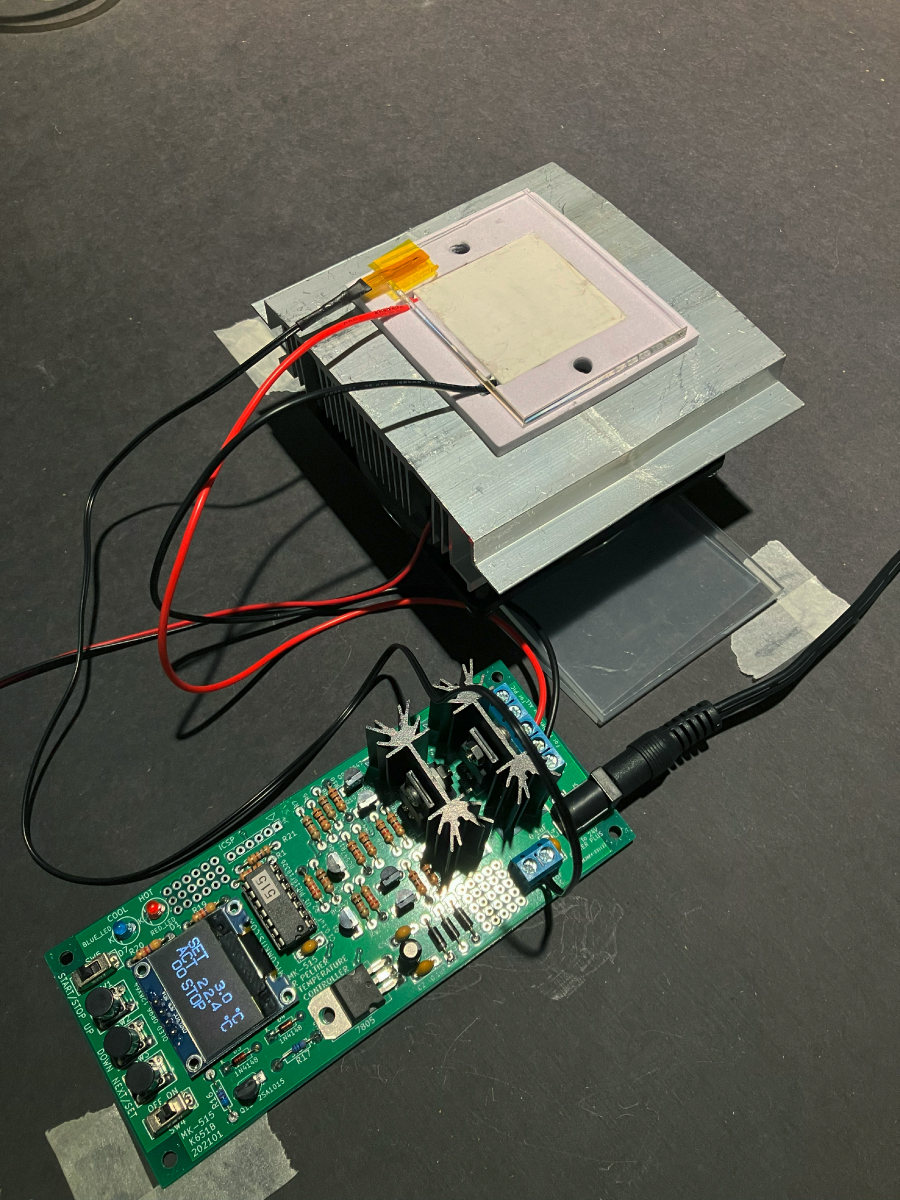

test3 image3

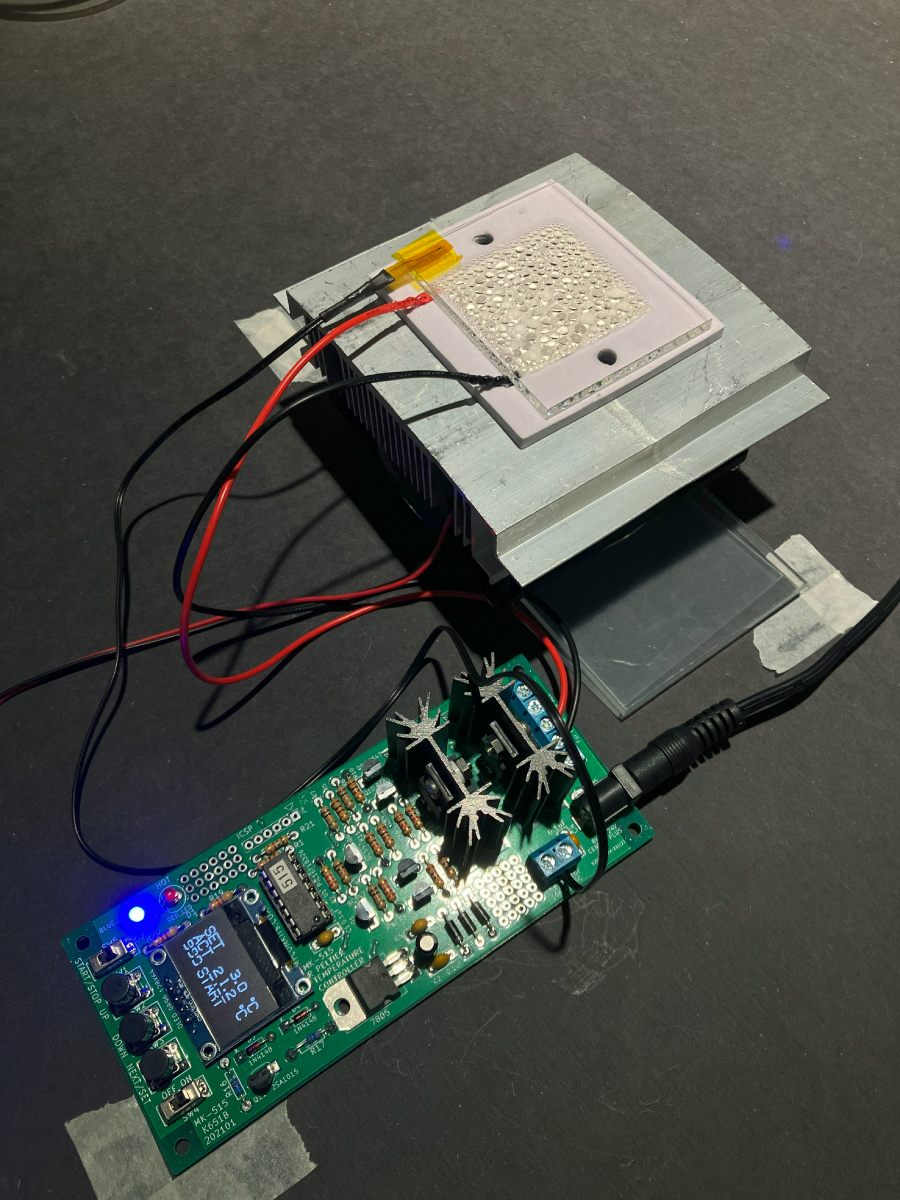

test3 image4
t = 0 min, 60 min

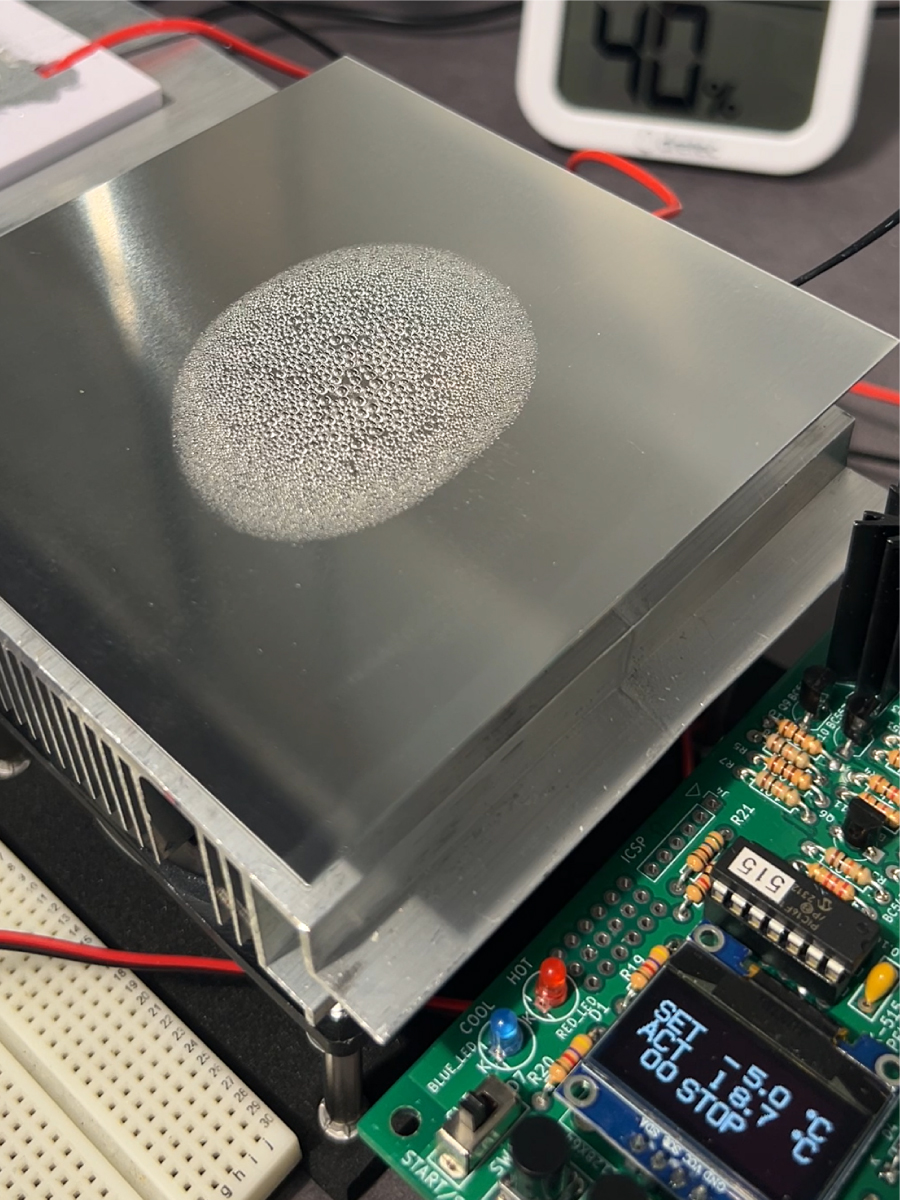

Test.4

test4 image1
[Condition]
T = 22 ℃
RH = 38 %
t = 60 min
Material: Aluminium, Copper
Dimensions: 100 x 100 mm, 20 Φ
Thickness: 0.3 mm, 10 mm
Surface: Gloss

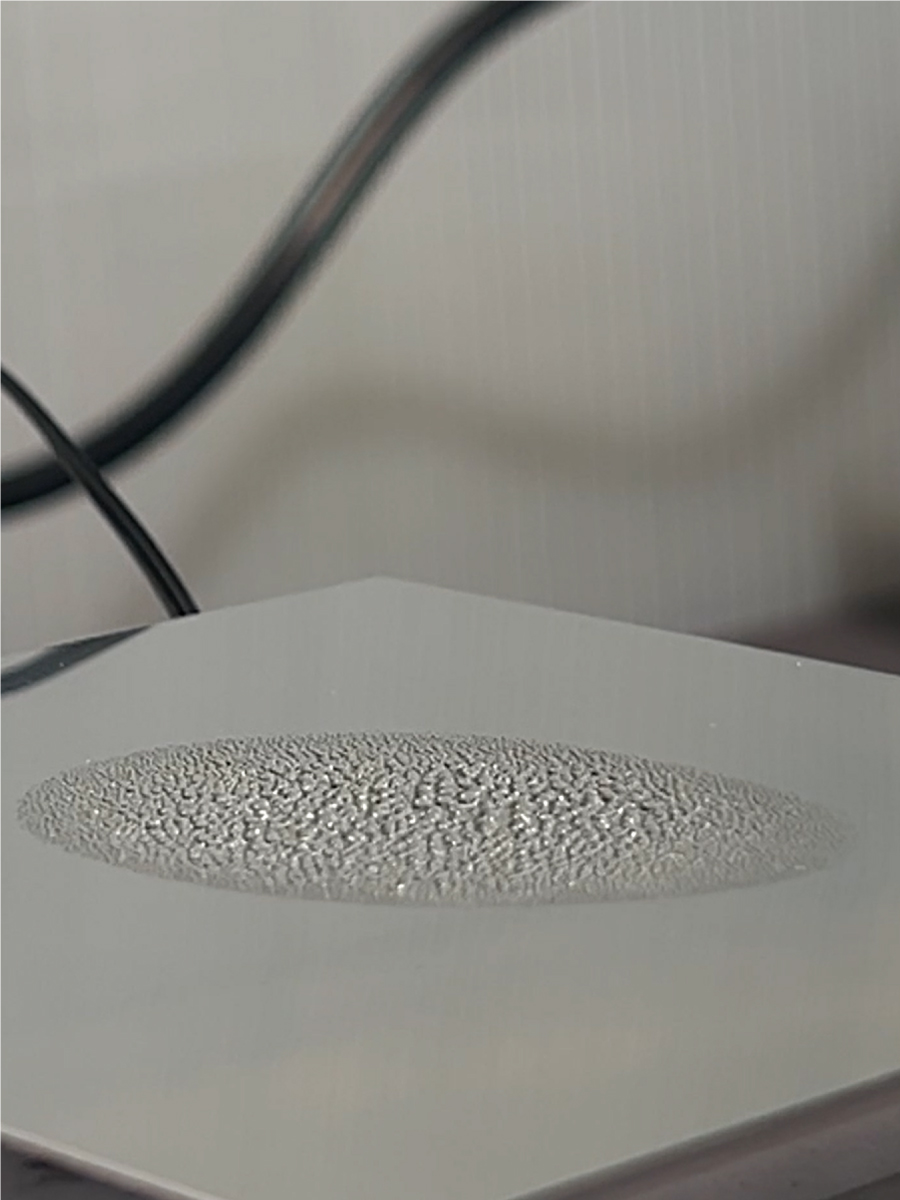

test4 image2

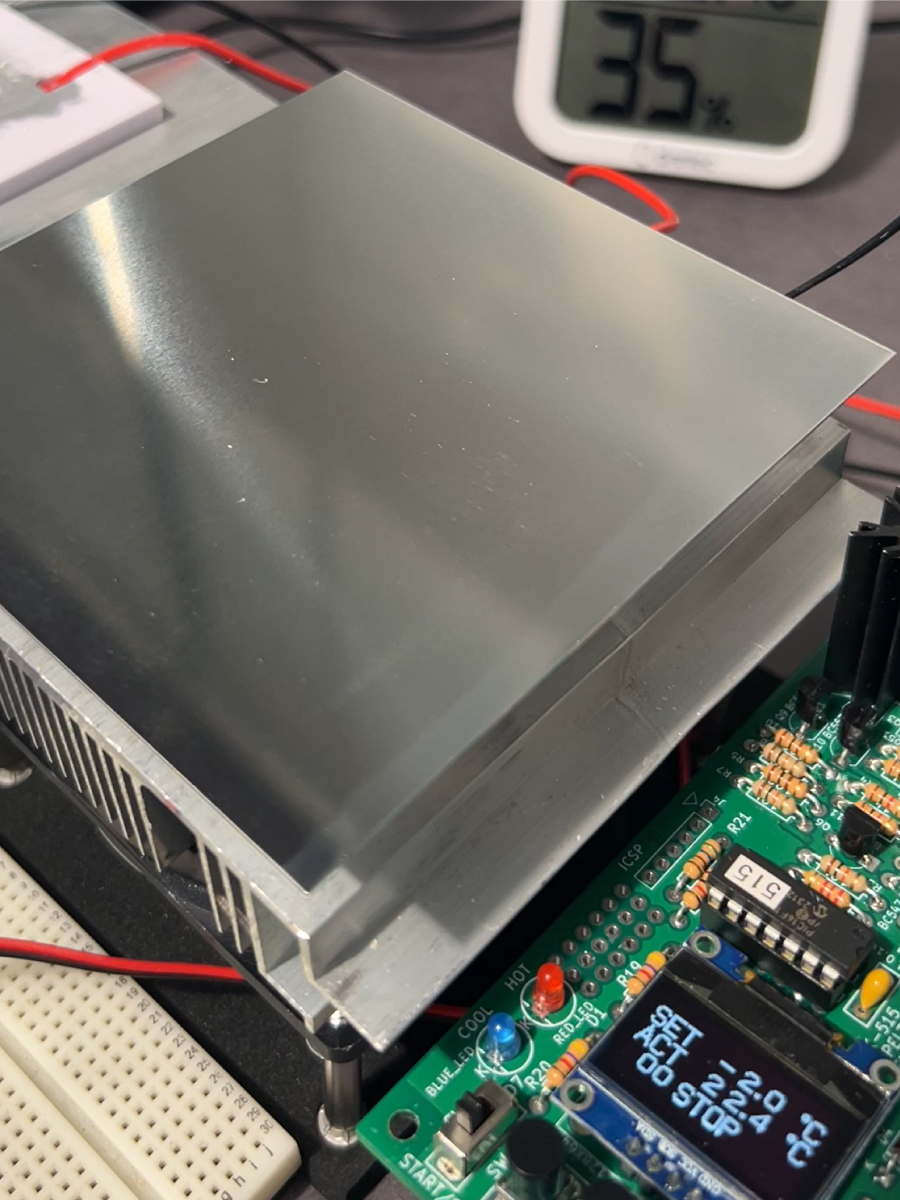

test4 image3
test4 image4
t = 0 min, 60 min

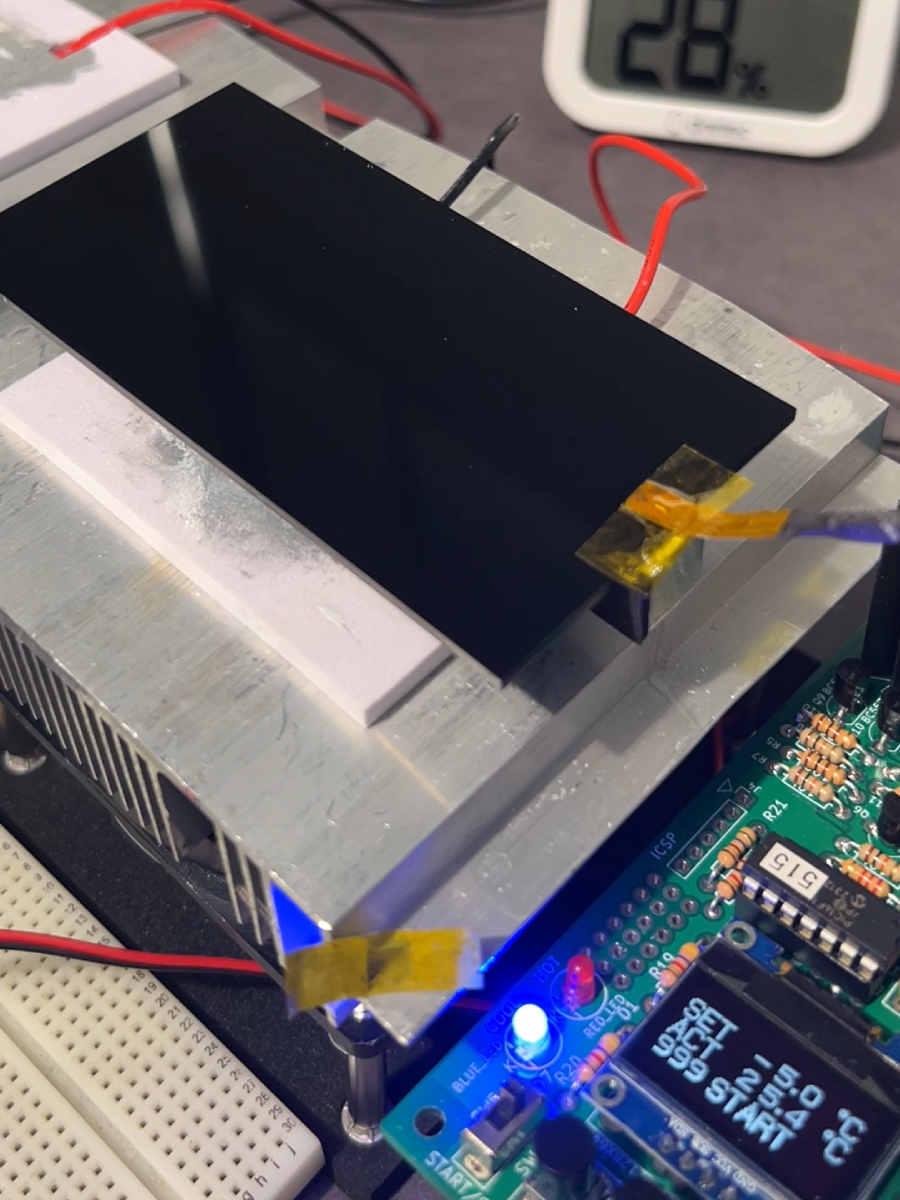

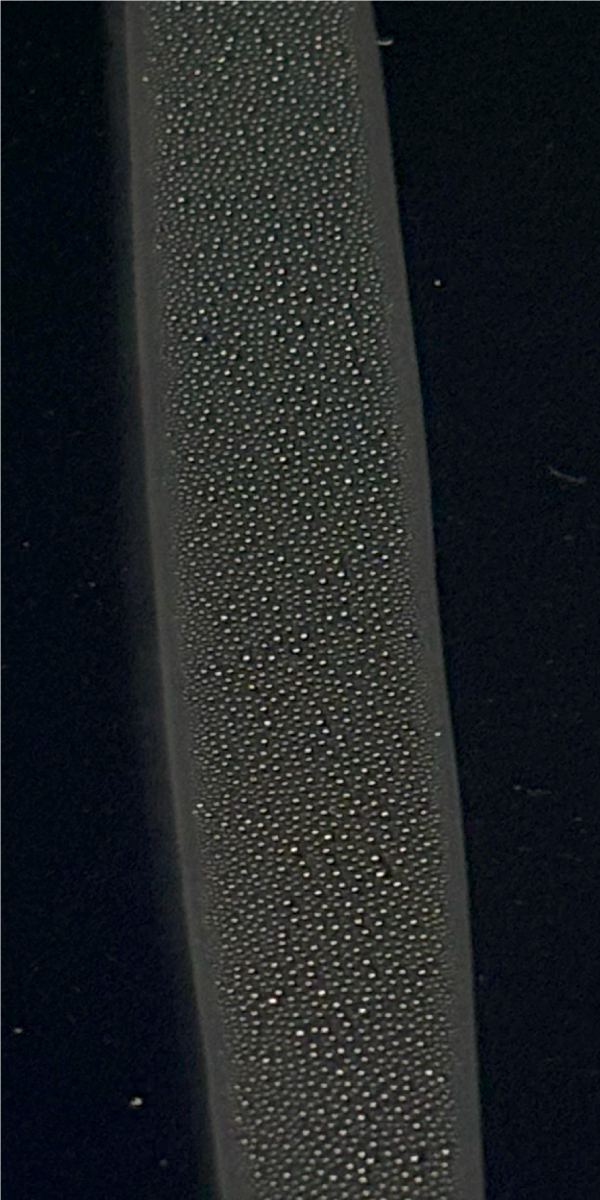

Test.5

test5 image1
[Condition]
T = 25 ℃
RH = 28 %
t = 60 min
Material: Acrylic, Aluminium
Dimensions: 50 x 100 mm, 10 x 100 mm
Thickness: 2 mm, 10 mm
Surface: Gloss

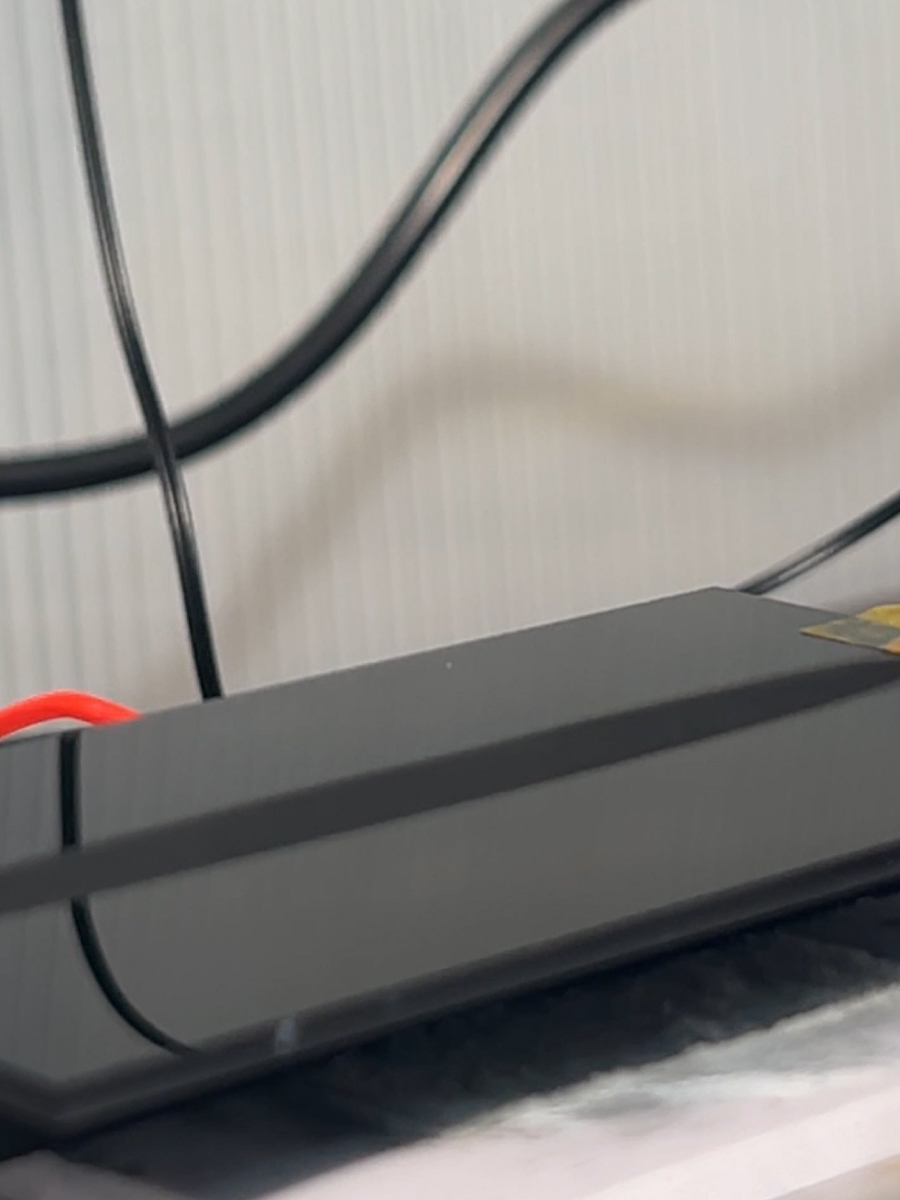

test5 image2
test5 image3

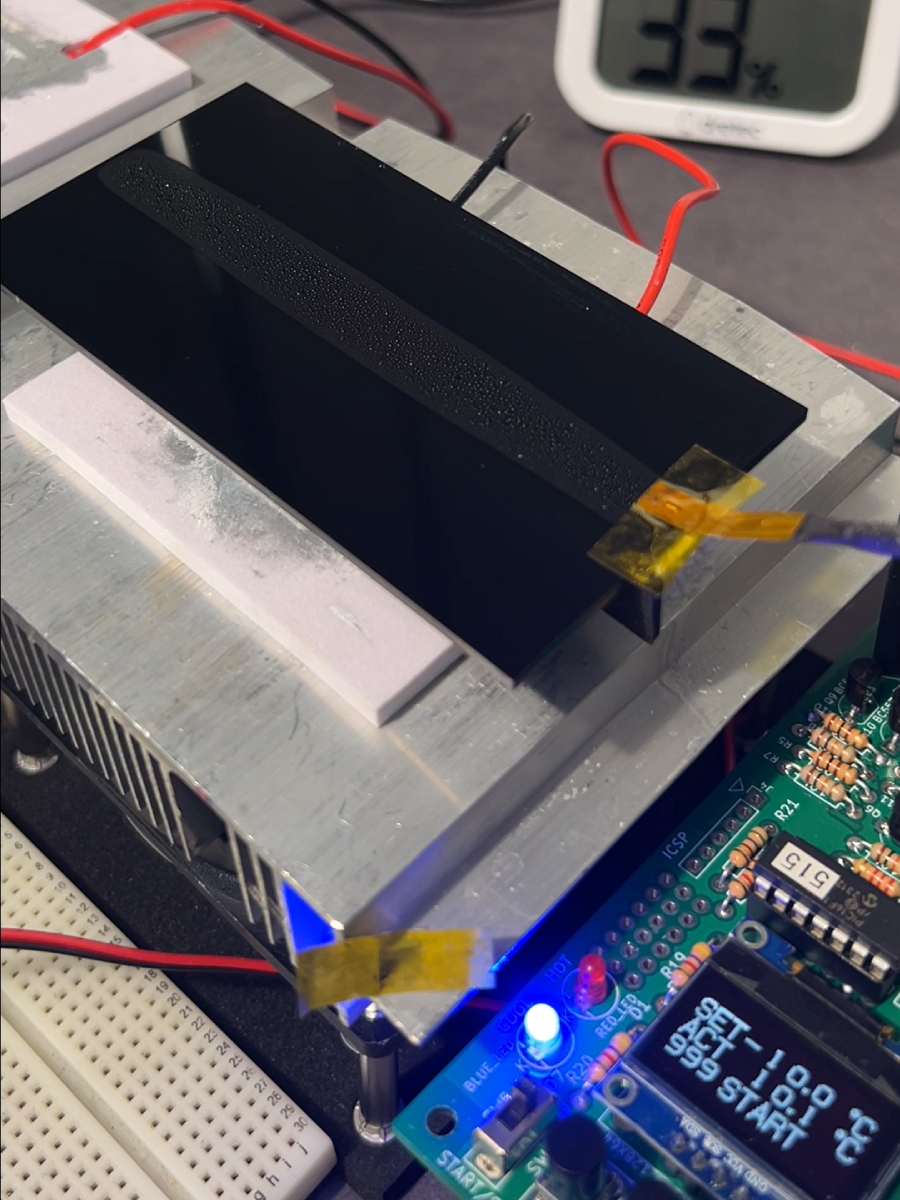

test5 image4
t = 0 min, 60 min

Test.6

test6 image1
[Condition]
T = 22 ℃
RH = 34 %
t = 60 min
Material: Gradation Acrylic, Gradation Copper
Dimensions: 50 x 100 mm
Thickness: 0.3 mm
Surface: Gloss

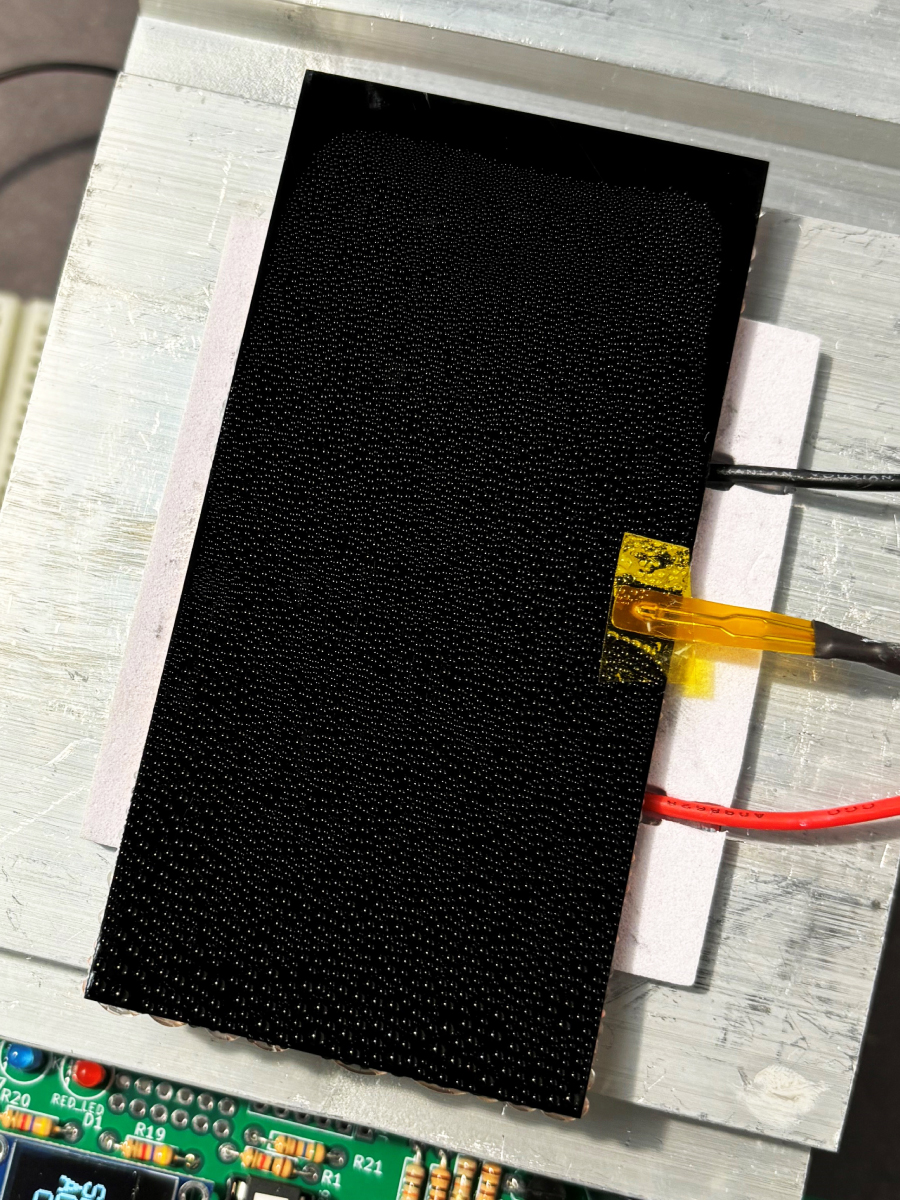

test6 image2

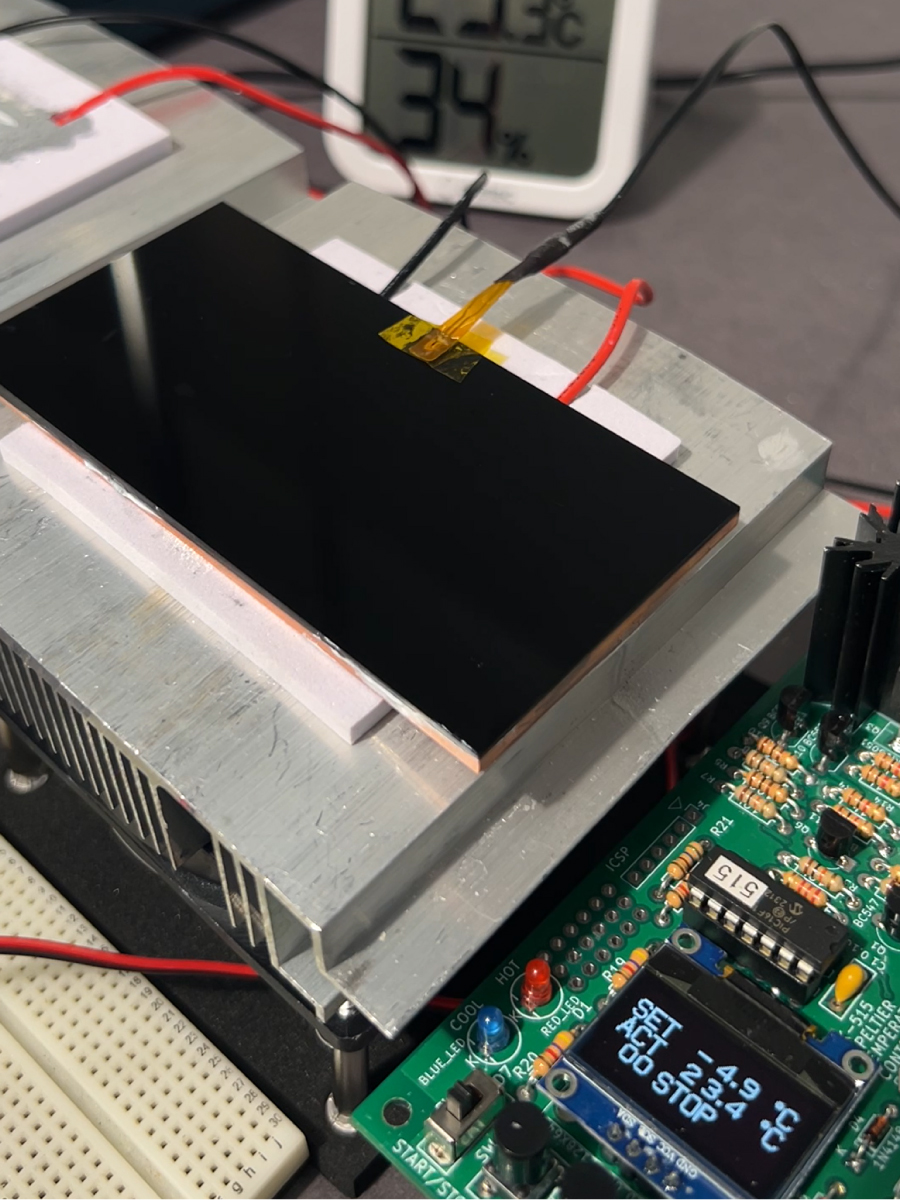

test6 image3

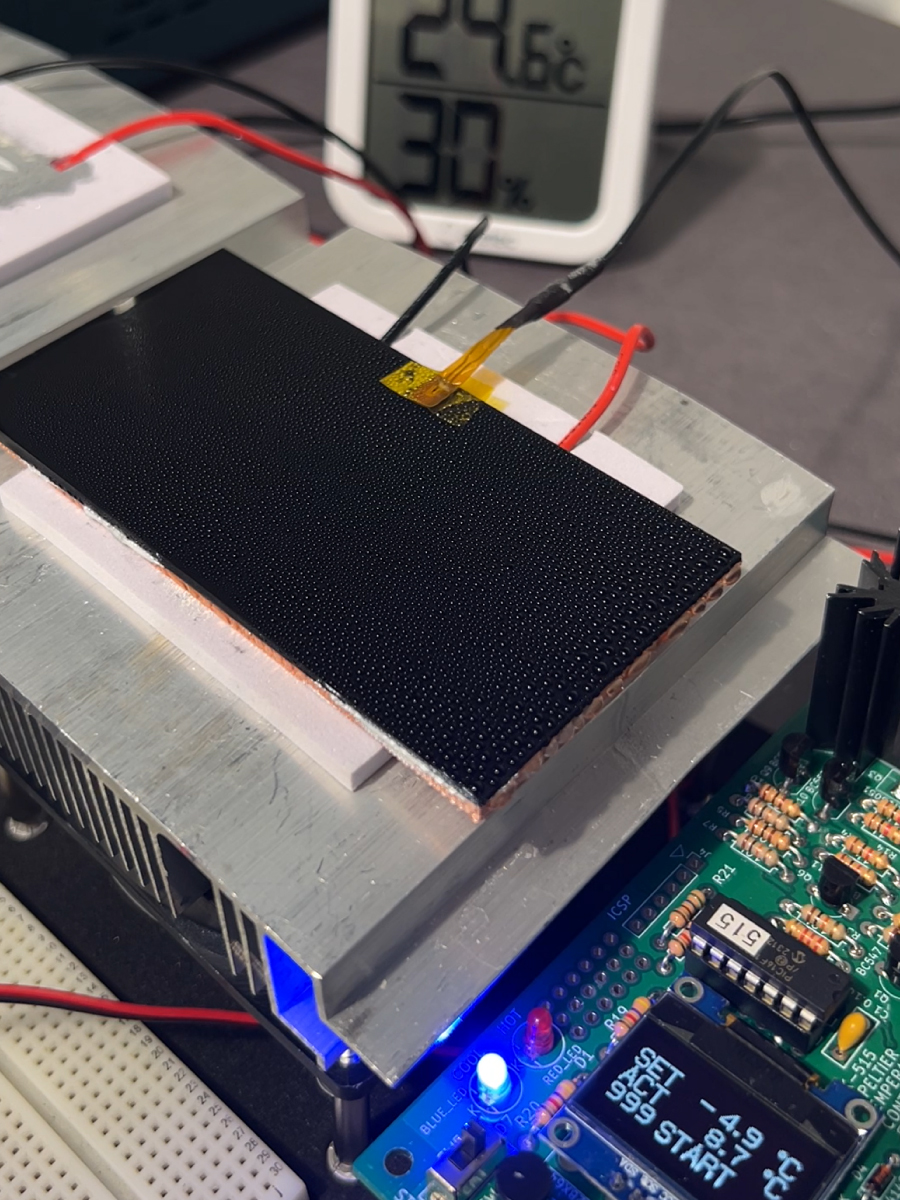

test6 image4
t = 0 min, 60 min
