Panasonic’s Amorphous Silicon Solar Cells (Amorton) are here for you to support any power supply applications for small communication devices centered around IoT devices.
- ・Temperature & Humidity Sensor
・CO2 Sensor
・Human Body Sensor
・Inventory Detection Sensor
・Devices for Remote Work - ・Automatic Flushing Sensor
・Electronic Shelf Label
・Picking System
・Beacon Terminal
・Tracking System - ・Security Devices
・Wearable Devices
・Remote Controller
・Other Electronic Equipment and
Power Supply for Digital Display
Features

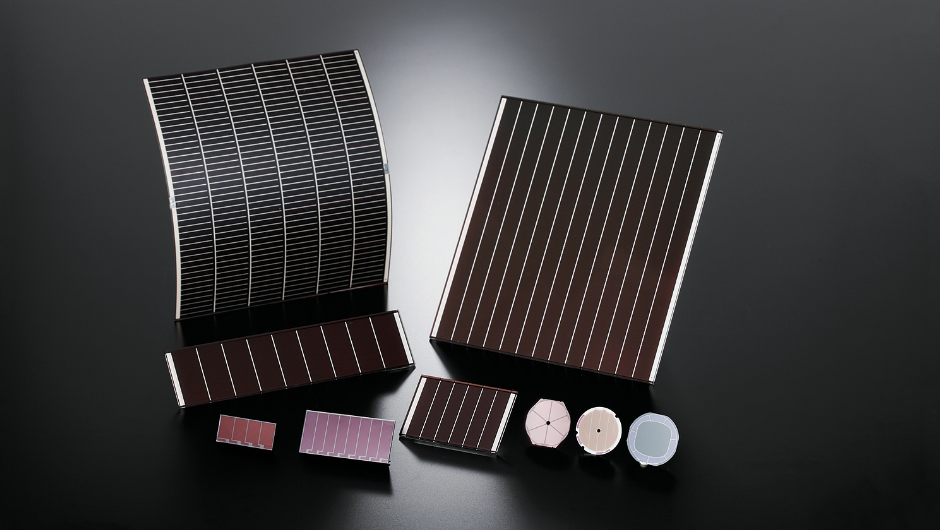

Our amorphous solar cells harvest energy well even under weak light conditions, therefore used as power sources for a wide variety of consumer devices such as wrist watches, calculators, and IoT sensors.
Thickness down to 110 μm
Allows wide Freedom of design
Even works at indoor light down to 50lux
Film and stainless steel substrates
for demanding surroundings
Film and stainless steel substrates
for demanding surroundings
Irradiance*1

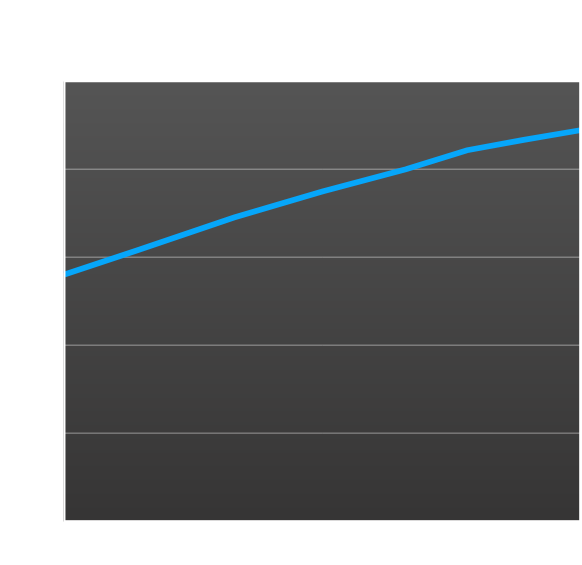

Irradiance Dependency of VOC*2
Irradiance [lx]Power Variation by Temperature
Temperature [°C]Conditions (Rechargeable Battery – Friendly)

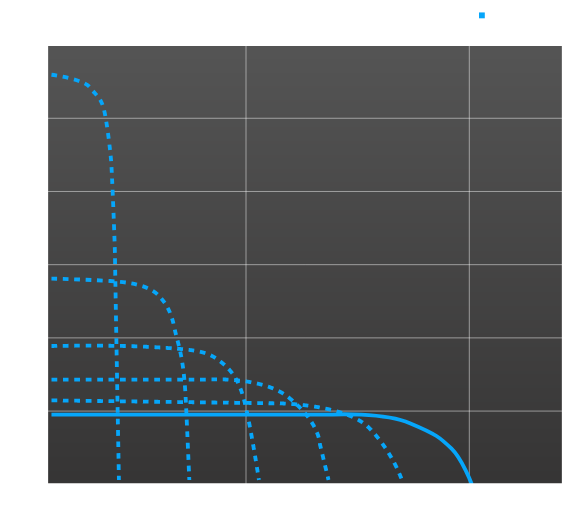

Various Voltage/Current Setup on the same effective area.
Voltage [V]Find your best Amorton solar cell.
In two steps, you can choose the best Amorton solar cell for your application.
-Step1Select the area you are considering to set your device.
-Step2Choose A or B.
-Best Choice
| Product name | White fluorescent light, 200Lx, 25℃, Initial value | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | |||
|---|---|---|---|---|---|---|---|---|---|
| Voc (V) |
Isc (μA) |
Vope (V) |
Iope (μA) |
||||||
| AM-1437 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |  |
| Product name | Substrate | AM-1.5, 100mW/cm2, 25℃, Initial value | Solar simulator, 50kLx, 25℃, Initial value | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vope (V) |
Iope (mA) |
Pm (mW) |
Vpm (V) |
Ipm (mA) |
Vope (V) |
Iope (mA) |
Pm (mW) |
Vpm (V) |
Ipm (mA) |
|||||||
| AM-5308 | glass | 1.7 | 68.8 | 117.0 | 1.9 | 61.5 | 1.7 | 31.1 | 58.0 | 1.9 | 29.2 | 50.1 | 47.2 | 1.1 | 6.4 | |
-Other Choices
| AM-1437 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
|---|---|---|---|---|---|---|---|---|---|
| AM-1437 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| AM-1437 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| AM-5308 | glass | 1.7 | 68.8 | 117.0 | 1.9 | 61.5 | 1.7 | 31.1 | 58.0 | 1.9 | 29.2 | 50.1 | 47.2 | 1.1 | 6.4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM-5413 | glass | 2.2 | 16.7 | 39.0 | 2.6 | 15.0 | 2.2 | 7.5 | 18.0 | 2.6 | 7.1 | 33.0 | 23.9 | 1.1 | 2.1 | |
| AM-8706 | glass | 3.9 | 19.9 | 81.0 | 4.6 | 17.7 | 3.9 | 9.0 | 39.0 | 4.6 | 8.3 | 36.1 | 41.3 | 1.1 | 4.1 | |
| AM-8704 | glass | 3.9 | 23.8 | 97.0 | 4.6 | 21.0 | 3.9 | 10.7 | 46.0 | 4.6 | 9.9 | 41.2 | 41.3 | 1.1 | 4.6 | |
Click here if you cannot find the products.
