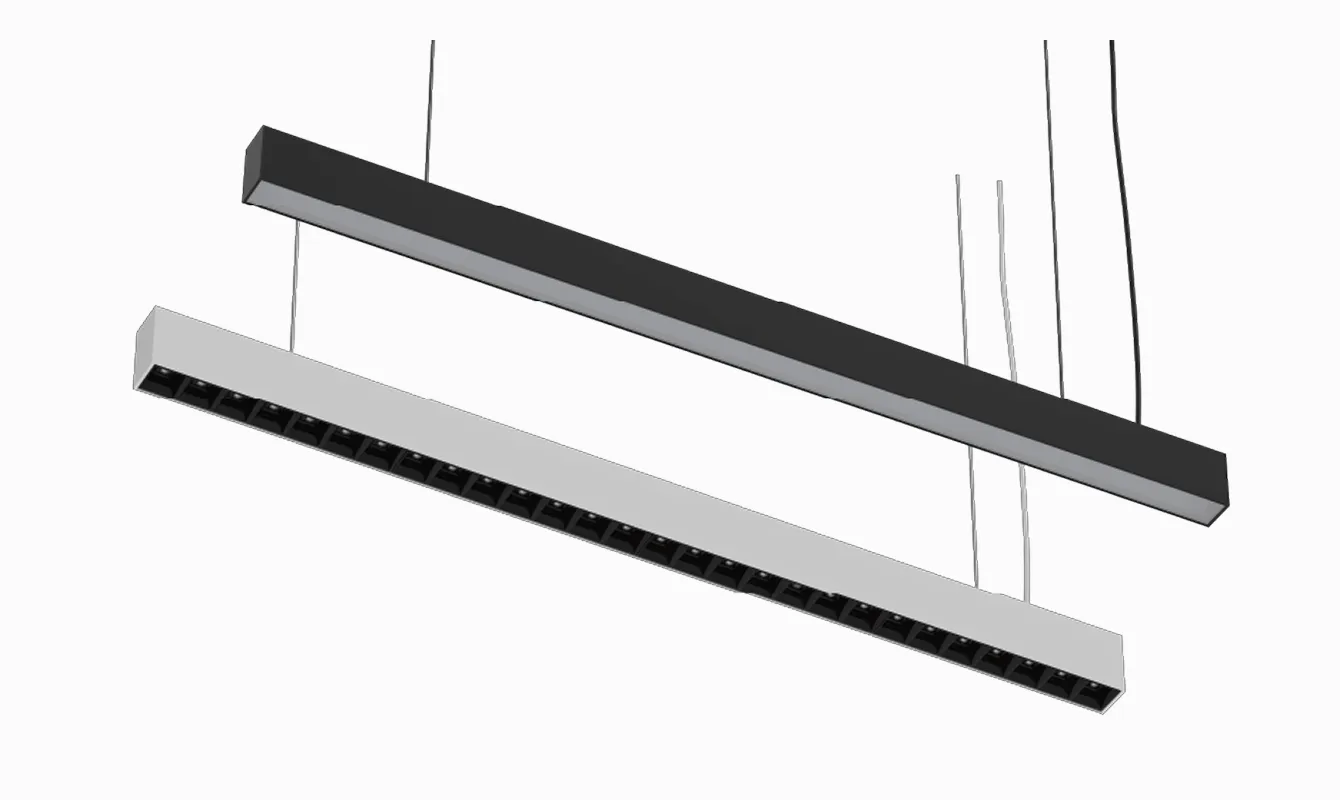

AXLINE (Suspended Linear Light)
Type:
- Suspended
Size:

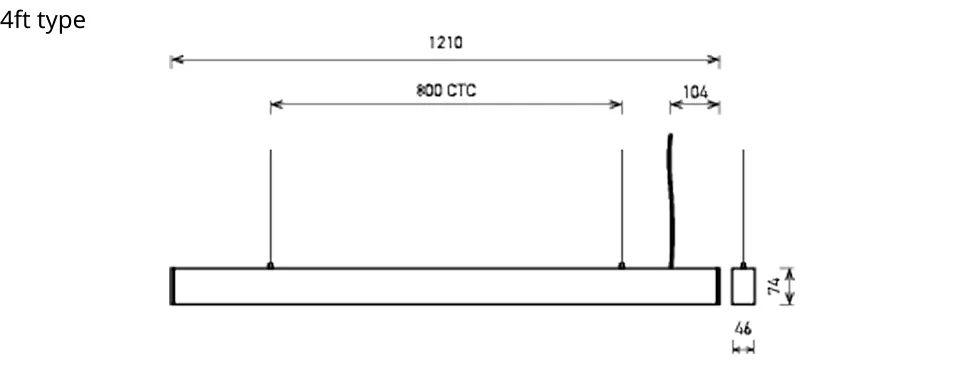

- 46×74 (2ft
- 4ft
- 8ft)
Optics:
- Opal Diffuser
- Micro Prismatic
- Dark Reflector (45°
- 60°
- 80°
- 45°×70°
- WallWasher)
Feature:
- IP20
Common housing family
Multiple combinations of LED and optical accessory options with common housing unit.
- Opal Diffuser : High efficiency
- Micro Prismatic : High visual comfort

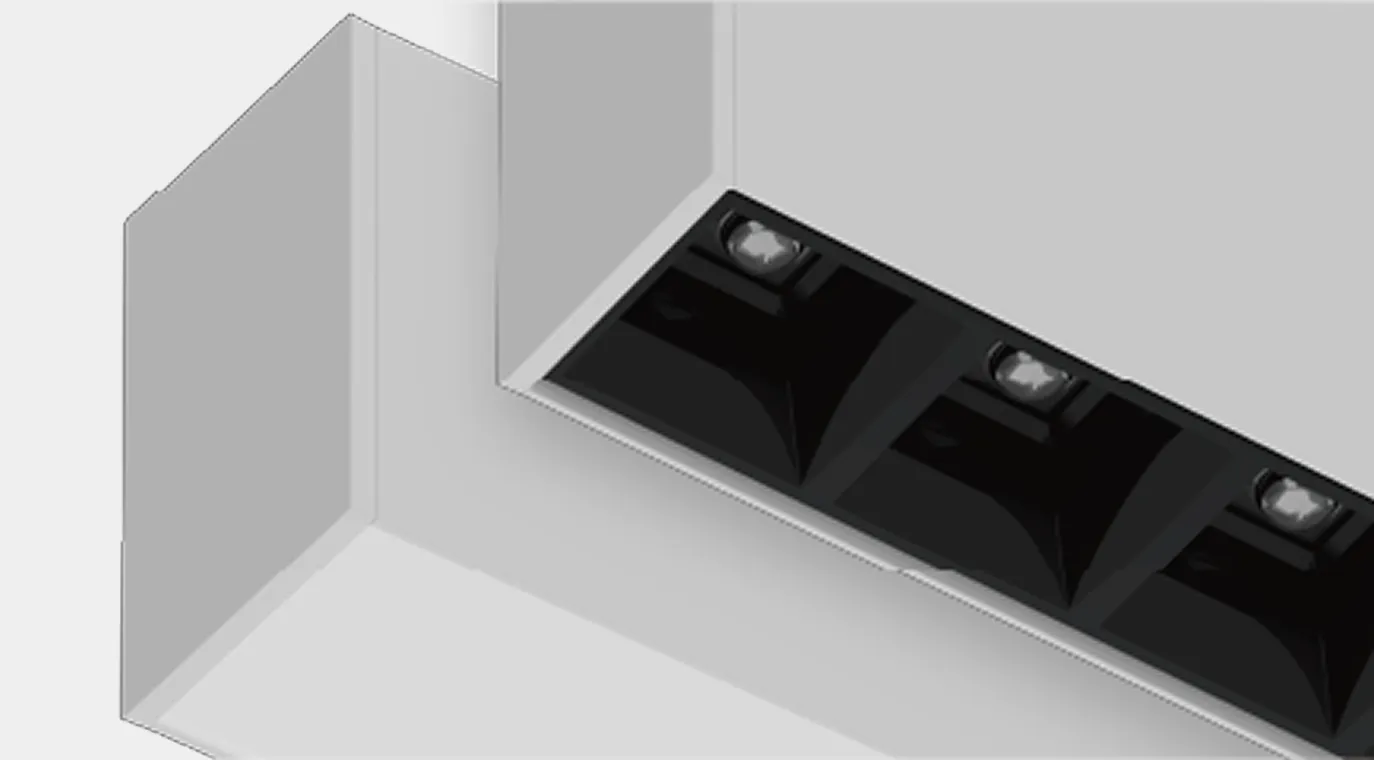

- Dark Reflector
Noiseless plain shape
Precisely designed linear profile blend into architecture.
- Flat design with no grooves or gaps.
- Screw is not visible on the surface.
Elaborate details design

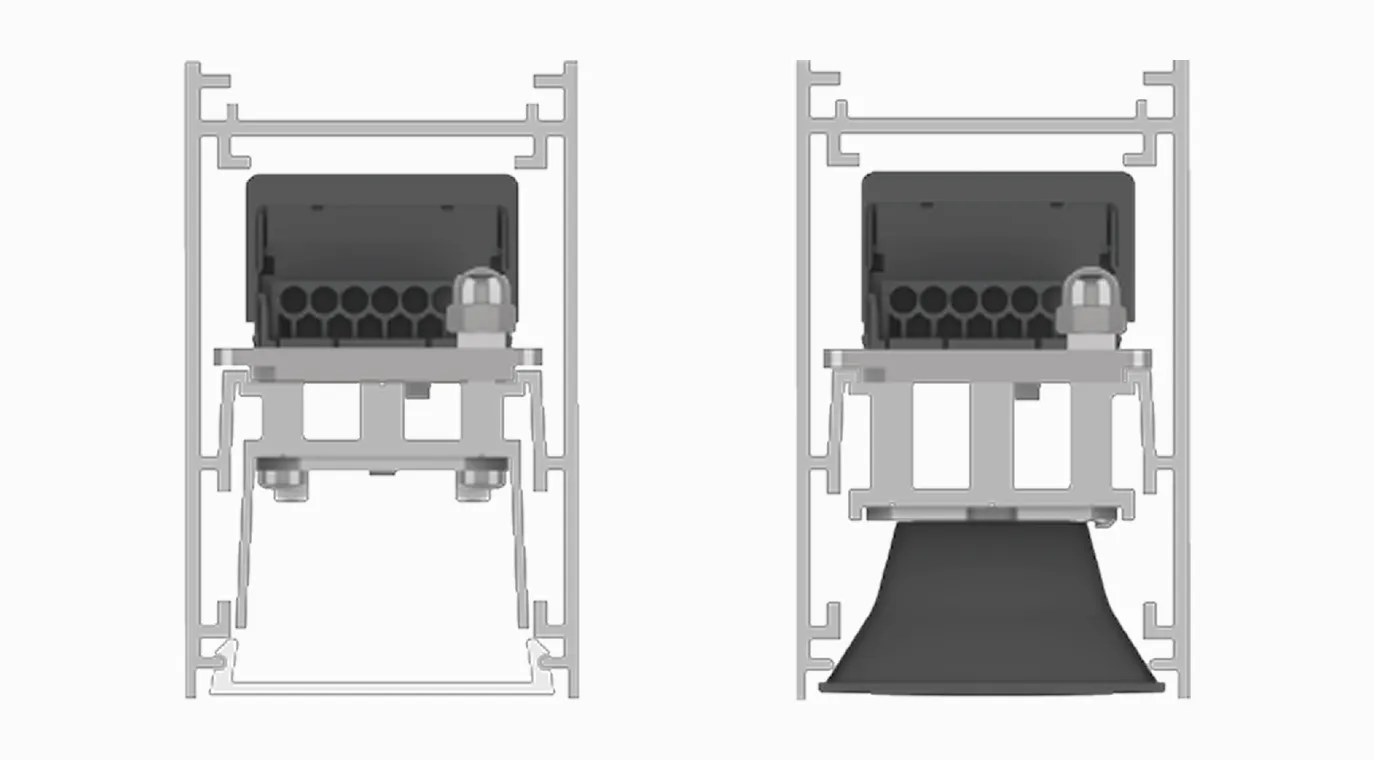

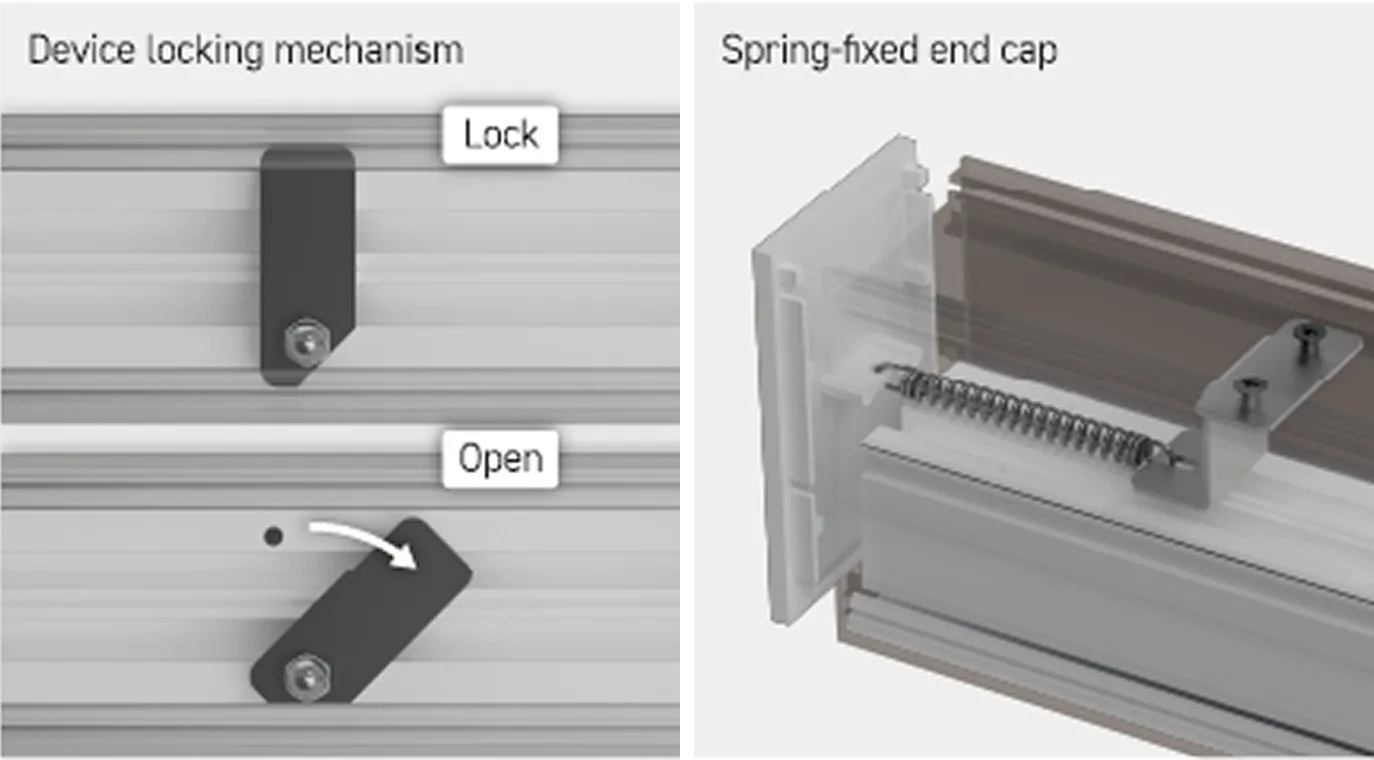

- Easy to maintenance :
Power device can be taken out from bottom of fixtures, Hence maintenance can be completed as installed. - Spring-fixed end caps eliminate light leakage and reduce misalignment.
| Mount | Suspended | ||
|---|---|---|---|
| Wattage | 18W(2ft) / 36W(4ft) / 72W(8ft) | ||
| Lip type / Optics | Opal Diffuser | Micro Prismatic | Dark Reflector (45° / 60° / 80° / 45°x70° / WallWasher) |
| Efficacy | ≧98 lm/W (CRI80, White body, 4000K) ≧90 lm/W (CRI80, Black body, 4000K) |
≧87 lm/W (CRI80, White body, 4000K) ≧80 lm/W (CRI80, Black body, 4000K) |
≧140 lm/W (60°, CRI80, White body, 4000K) ≧130 lm/W (60°, CRI80, Black body, 4000K) |
| Combination | Standalone / Semi-continuous / Continuous | ||
| CRI | CRI >80 / >90 | ||
| CCT | 3000K / 4000K / 5000K | ||
| Dimming | Non-Dimmable / DALI2 | ||
| Finish | White / Black | ||
