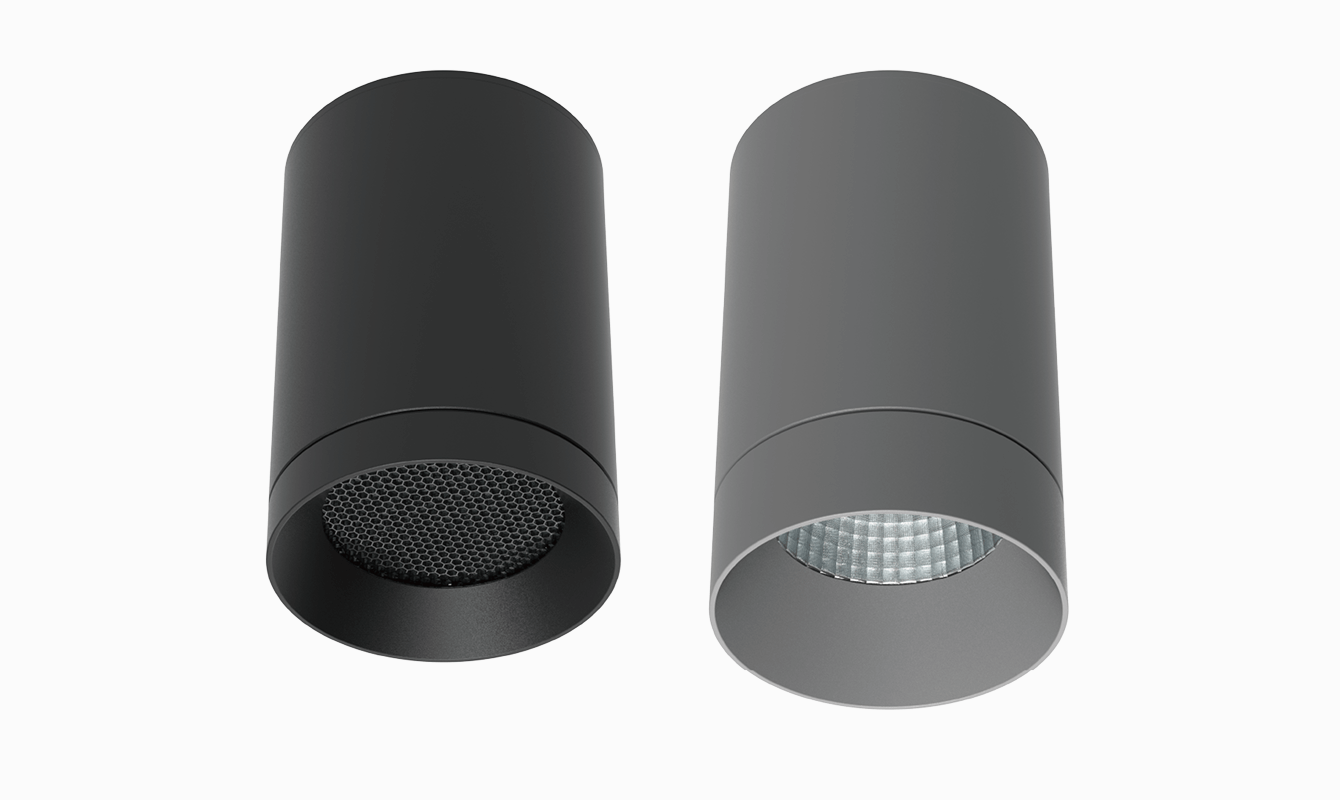

CYLIO (Surface Downlight)
Type:
- Φ100 (10W / 15W)

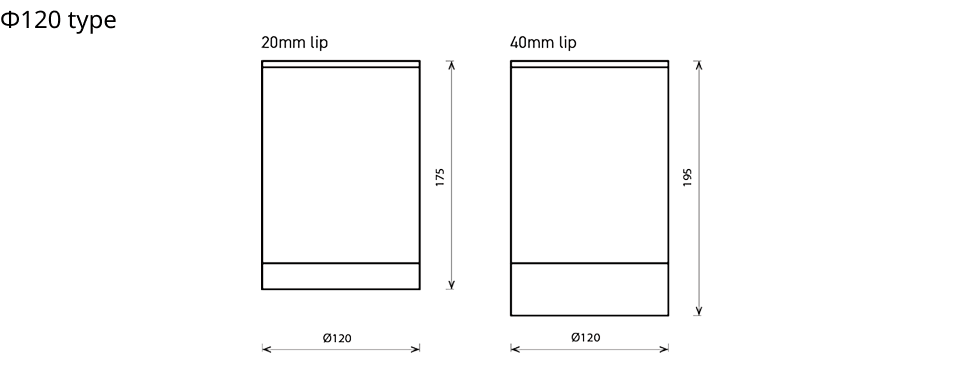

- Φ120 (20W / 30W / 36W)
Lip type:
- 20mm / 40mm
Optics:
- Reflector
- Honeycomb
Beam:
- 28° / 36° / 45° (Φ100, Reflector)
- 24° / 36° / 57°(Φ120, Reflector)
Feature:
- IP66
Common housing family
Multiple combinations of LED and optical
accessory options with common housing unit.

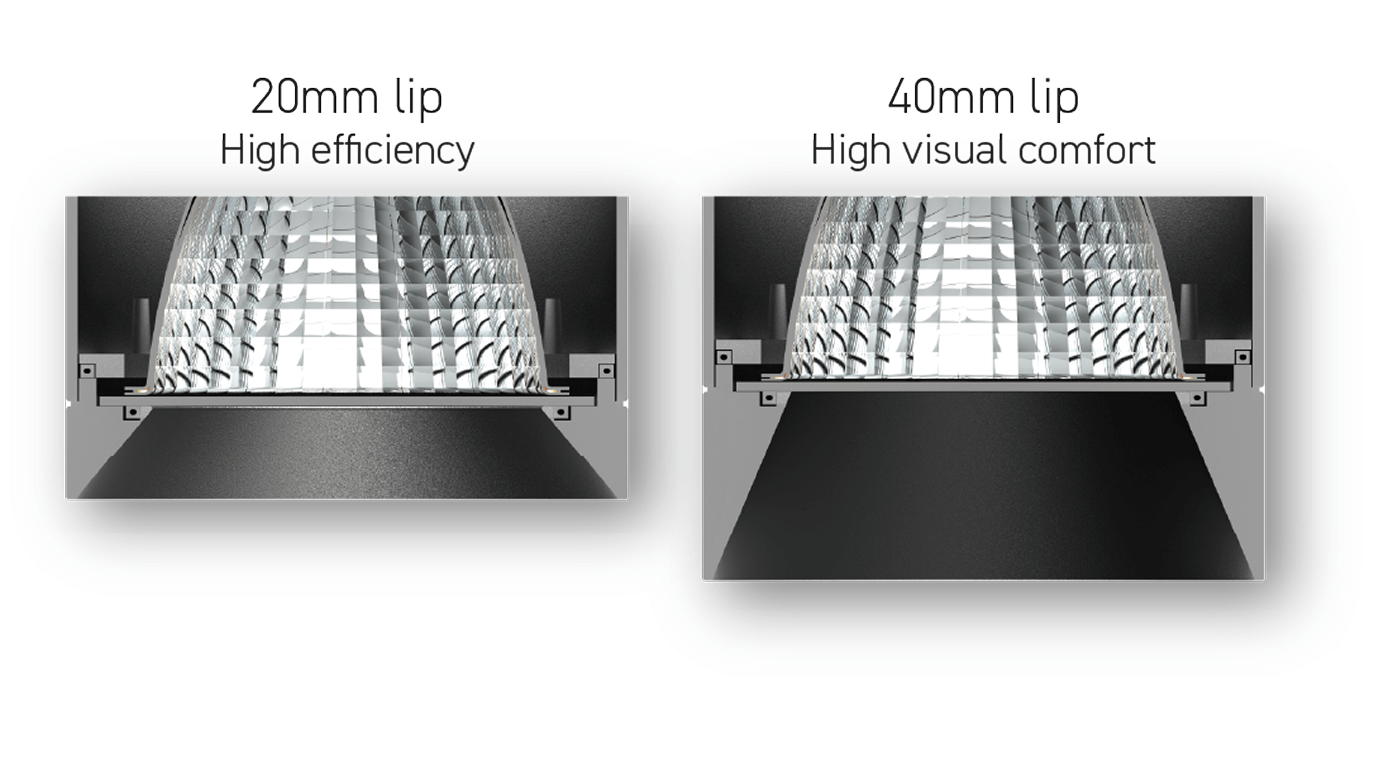

- Low lip : High efficiency
- Deep lip : High visual comfort
- Optics option : Honeycomb louvre
Noiseless plain shape
Precisely designed cylinder shape blend into
architecture.
- Screw is not visible on the surface
- Lip angle designed not to reflect light
- Minimum rim width reduce visibility of fixture
Elaborate details design
- Rotational twist to lock mechanism
- Built in loop-in loop-out wiring
- Anti condensation breather valve
| Size | Φ100 | Φ120 | |||
|---|---|---|---|---|---|
| Wattage | 10W | 15W | 20W | 30W | 36W |
| Lip type | 20mm lip / 40mm lip | ||||
| Optics | Reflector / Honeycomb | ||||
| Beam | 28° / 36° / 45° (Reflector) | 24° / 36° / 57° (Reflector) | |||
| Efficacy | ≧88lm/W (28°, 20mm lip, CRI80, 4000K) ≧100lm/W (36°/45° , 20mm lip, CRI80, 4000K) |
≧100lm/W (20mm lip, CRI80, 4000K) | |||
| CRI | CRI >80 / >90 | ||||
| CCT | 3000K / 4000K / 5000K | ||||
| Dimming | Non-Dimmable / DALI2 | ||||

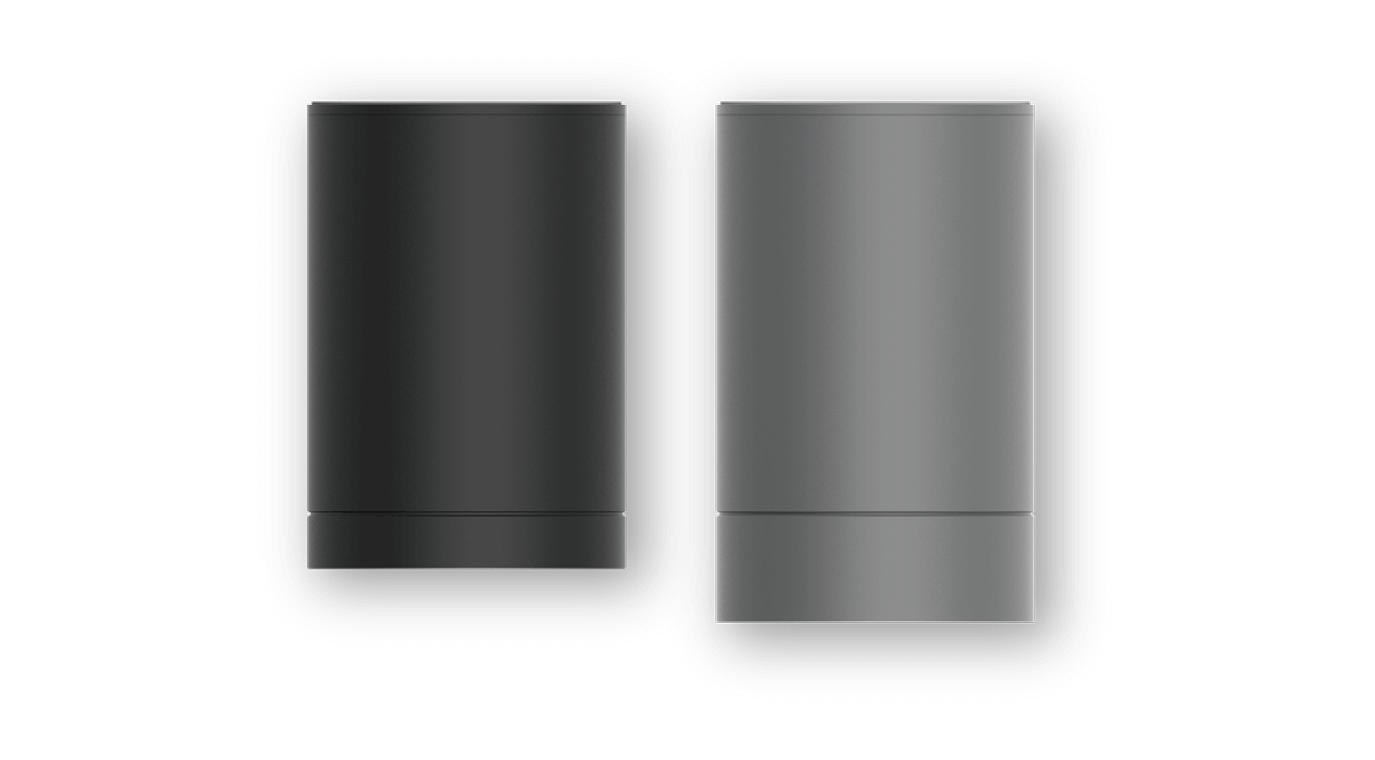

| Finish | Gray aluminium / Black | ||||
Support
For detailed inquiries about KUU.
*You will be redirected to the sales company's website.
Indoor
FLOAT Linear
LGP Linear Light
FLOAT Square

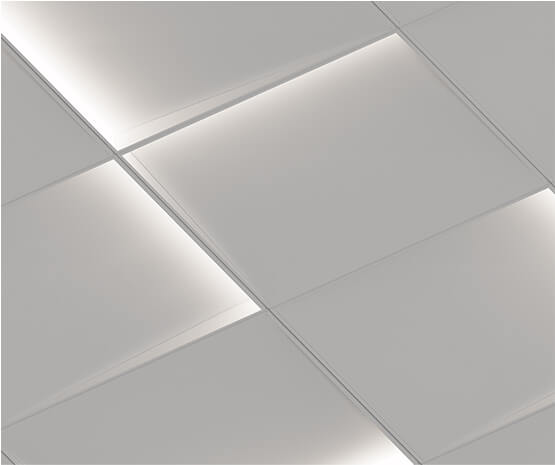

LGP 2x2 Base Light
SoftLight

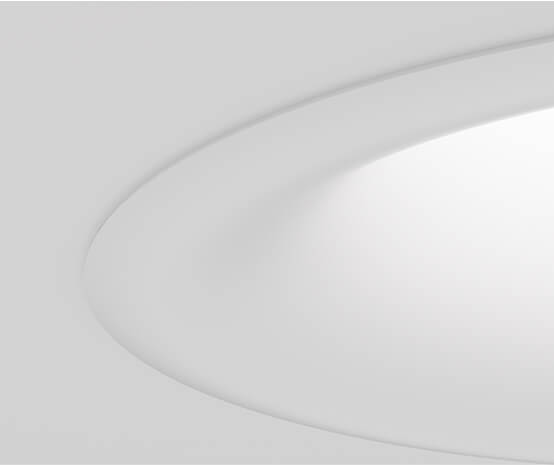

Recessed Downlight

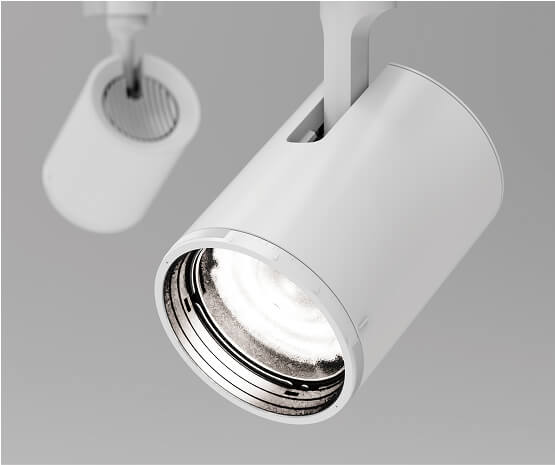

TOLSO
