PBTM19408
- Certificates & Standards
| Type of Luminaire | Batten |
|---|---|
| Industrial Batten | |
| Industrial Batten | |
| Set Model No. | PBTM19408 |
| Type of Luminaire | Batten |
|---|---|
| Industrial Batten | |
| Industrial Batten | |
| Set Model No. | PBTM19408 |
| Type of Light Source | LED |
|---|---|
| Power Input | 40W |
| System Lumen Output | 4200 lm |
| System Efficacy | 105 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.95 |
| Lifetime | 50000H(L70) |
| CCT | 5700K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 120deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 66 |
| IK code | |
| Ambient Temperature Range | -10 - 45°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | <10% |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

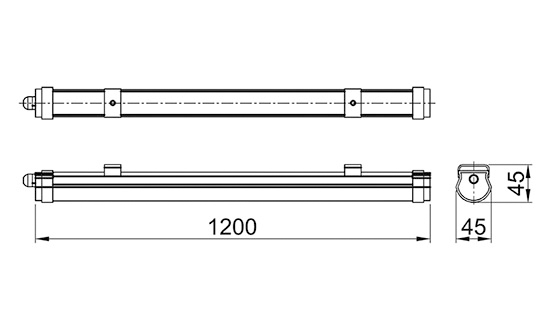

| Dimensions | 45mm*1200mm*45mm |
| Weight | 0.4 kg |
| Body | PC |
| Reflector | |
| Diffuser | PC |
| Trim | |
| Caseing | |
| Country of Origin | India |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
