KPGL0112548DW
- Certificates & Standards
| Type of Luminaire | Linear Light |
|---|---|
| Single LGP | |
| KUU Series_FLOAT Linear | |
| Set Model No. | KPGL0112548DW |
| Type of Luminaire | Linear Light |
|---|---|
| Single LGP | |
| KUU Series_FLOAT Linear | |
| Set Model No. | KPGL0112548DW |
| Type of Light Source | LED |
|---|---|
| Power Input | 25W |
| System Lumen Output | 2875 lm |
| System Efficacy | 115 lm/W |
| Power Voltage | 240V |
| Power Factor | >0.90 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | <3 |
| Input Frequency | 50Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -10 - 45°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

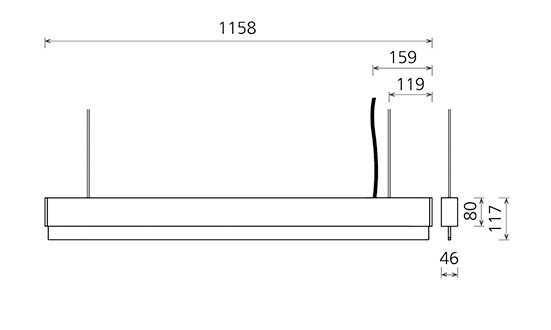

| Dimensions | 46mm*1158mm*117mm |
| Weight | 3.2 kg |
| Body | Aluminium Extrusion |
| Reflector | |
| Diffuser | PMMA |
| Trim | |
| Caseing | |
| Country of Origin | India |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
