NNV76046WE1M
- Certificates & Standards
- CB / RoHs / CISPR15 / SIRIM
| Type of Luminaire | Downlight |
|---|---|
| Standard DL (Trade) | |
| DN 3G | |
| Set Model No. | NNV76046WE1M |
| Type of Luminaire | Downlight |
|---|---|
| Standard DL (Trade) | |
| DN 3G | |
| Set Model No. | NNV76046WE1M |
| Type of Light Source | LED |
|---|---|
| Power Input | 15W |
| System Lumen Output | 1275 lm |
| System Efficacy | 85 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 20000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

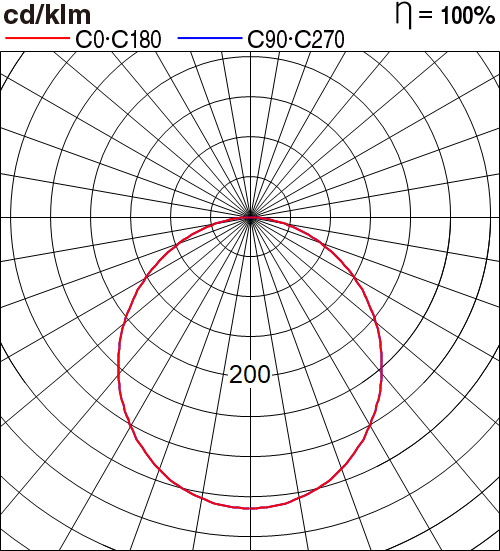

| Beam Angle | 200deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | 135mm |

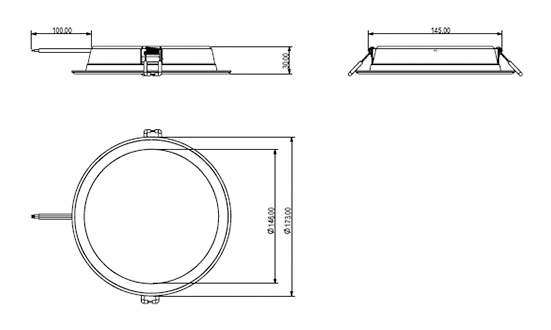

| Dimensions | 173mm*30mm |
| Weight | 0.148 kg |
| Body | PP(White) |
| Reflector | |
| Diffuser | PC(White) |
| Trim | PP(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | RG0 |
Spec and certification may change without notice.
