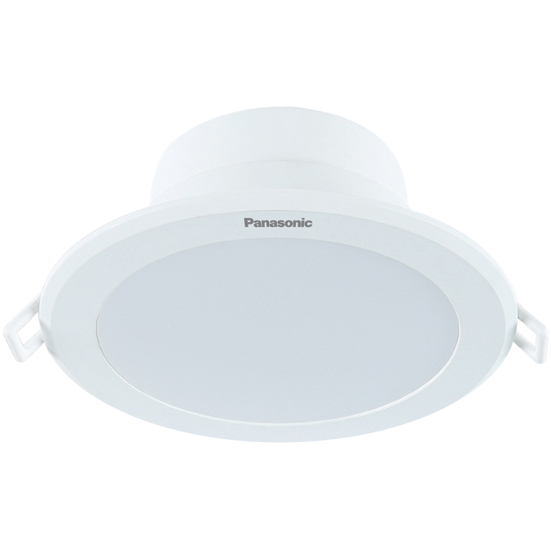

NNV71007WE1A
- Certificates & Standards
- RoHs / CISPR15 / TISI / CR
| Type of Luminaire | Downlight |
|---|---|
| Low Wattage Standard DL (Pro) | |
| SP | |
| Set Model No. | NNV71007WE1A |
| Type of Luminaire | Downlight |
|---|---|
| Low Wattage Standard DL (Pro) | |
| SP | |
| Set Model No. | NNV71007WE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 12W |
| System Lumen Output | 1200 lm |
| System Efficacy | 100 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | <5 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

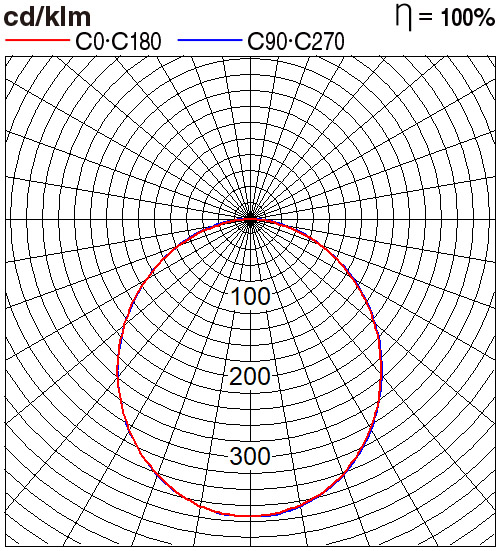

| Beam Angle | 100deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | IK 03 |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | 125mm |

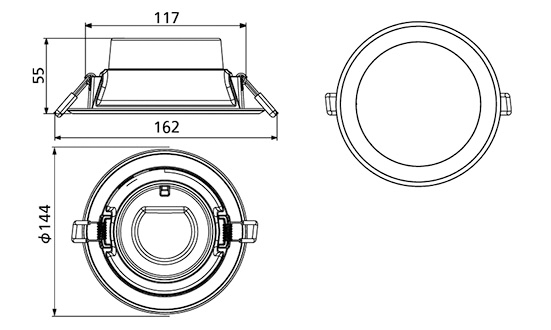

| Dimensions | L144mm*H55mm |
| Weight | 0.16 kg |
| Body | PBT(White) |
| Reflector | |
| Diffuser | PC |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | Cut-out size:φ125mm |
Spec and certification may change without notice.
