NNP72239031
- Certificates & Standards
- RoHs
| Type of Luminaire | Downlight |
|---|---|
| Low Wattage Standard DL (Pro) | |
| I-Series | |
| Set Model No. | NNP72239031 |
| Type of Luminaire | Downlight |
|---|---|
| Low Wattage Standard DL (Pro) | |
| I-Series | |
| Set Model No. | NNP72239031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 10.5W |
| System Lumen Output | 1030 lm |
| System Efficacy | 98 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 40000H(L70) |
| CCT | 3500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | 15deg. |

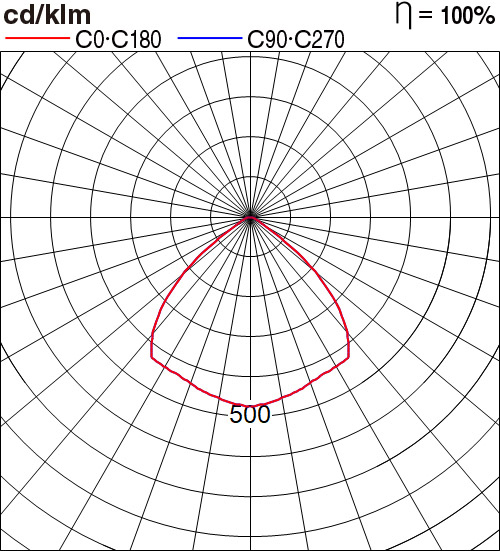

| Beam Angle | 85deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5° - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | 112mm |
| Dimensions | 112mm*81mm |
| Weight | 0.36 kg |
| Body | Aluminium |
| Reflector | Aluminium |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks | Cool White |
Spec and certification may change without notice.
