LDMHV3L30MG5
- Certificates & Standards
- CB / RoHs / TISI
| Type of Luminaire | LED Lamp |
|---|---|
| Halogen | |
| Halogen | |
| Set Model No. | LDMHV3L30MG5 |
| Type of Luminaire | LED Lamp |
|---|---|
| Halogen | |
| Halogen | |
| Set Model No. | LDMHV3L30MG5 |
| Type of Light Source | LED |
|---|---|
| Power Input | 3W |
| System Lumen Output | 250 lm |
| System Efficacy | 83 lm/W |
| Power Voltage | 100-240V |
| Power Factor | 0.5 |
| Lifetime | 15000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 38deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 0 - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

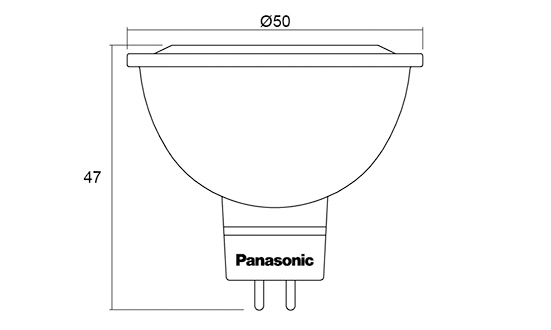

| Dimensions | 47mm*50mm |
| Weight | 0.029 kg |
| Body | Plastic |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | Power voltage :160-240V |
Spec and certification may change without notice.
