NNP90300GL
- Certificates & Standards
- RoHs
| Type of Luminaire | Decorative Light |
|---|---|
| Decorative Light | |
| Wall Washer RGBW & Mono Color | |
| Set Model No. | NNP90300GL |
| Type of Luminaire | Decorative Light |
|---|---|
| Decorative Light | |
| Wall Washer RGBW & Mono Color | |
| Set Model No. | NNP90300GL |
| Type of Light Source | LED |
|---|---|
| Power Input | 18W |
| System Lumen Output | 1530 lm |
| System Efficacy | 85 lm/W |
| Power Voltage | DC24V |
| Power Factor | |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | 75deg. |

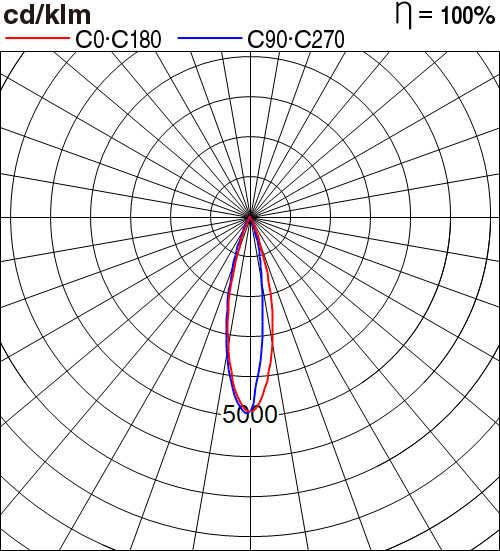

| Beam Angle | 30deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 66 |
| IK code | |
| Ambient Temperature Range | -25° - 50°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | |

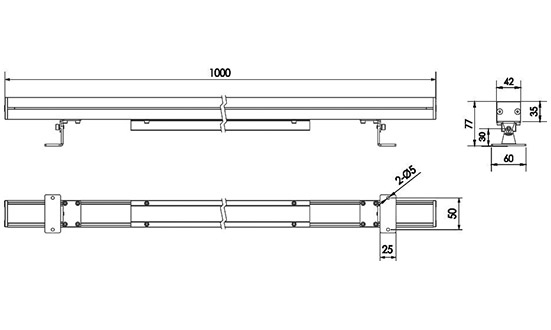

| Dimensions | 50mm*1000mm*77mm |
| Weight | 2 kg |
| Body | Painted ADC |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
