NNP48042D
- Certificates & Standards
- RoHs
| Type of Luminaire | High Bay |
|---|---|
| High Efficacy/Standard High Bay | |
| UFO | |
| Set Model No. | NNP48042D |
| Type of Luminaire | High Bay |
|---|---|
| High Efficacy/Standard High Bay | |
| UFO | |
| Set Model No. | NNP48042D |
| Type of Light Source | LED |
|---|---|
| Power Input | 80W |
| System Lumen Output | 12800 lm |
| System Efficacy | 160 lm/W |
| Power Voltage | 100-240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 90deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 65 |
| IK code | |
| Ambient Temperature Range | -30° - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

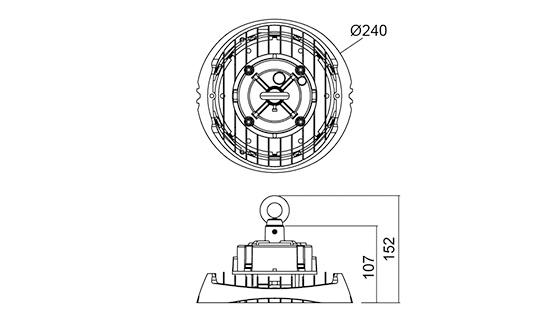

| Dimensions | 240mm*152mm |
| Weight | 2 kg |
| Body | ADC |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
