NNP335701GL
- Certificates & Standards
- RoHs
| Type of Luminaire | Decorative Light |
|---|---|
| Decorative Light | |
| Pixel Light (3-in-1 Series) | |
| Set Model No. | NNP335701GL |
| Type of Luminaire | Decorative Light |
|---|---|
| Decorative Light | |
| Pixel Light (3-in-1 Series) | |
| Set Model No. | NNP335701GL |
| Type of Light Source | LED |
|---|---|
| Power Input | 4.32W |
| System Lumen Output | 85 lm |
| System Efficacy | 20 lm/W |
| Power Voltage | DC24V |
| Power Factor | |
| Lifetime | 50000H(L70) |
| CCT | RGBK |
| CRI | |
| SDCM | |
| Input Frequency | |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 130deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 67 |
| IK code | |
| Ambient Temperature Range | -40° - 55°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | External |

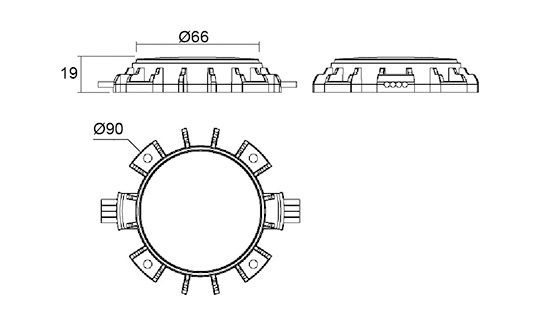

| Cut Out Size | 90mm |
| Dimensions | 66mm*19mm |
| Weight | |
| Body | Modified PVC |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
