XNTS51412DLJ9031
- Certificates & Standards
- RoHs
| Type of Luminaire | Downlight |
|---|---|
| System DL | |
| TOLSO Series | |
| Set Model No. | XNTS51412DLJ9031 |
| Type of Luminaire | Downlight |
|---|---|
| System DL | |
| TOLSO Series | |
| Set Model No. | XNTS51412DLJ9031 |
| Type of Light Source | |
|---|---|
| Power Input | 30.8W |
| System Lumen Output | 2240 lm |
| System Efficacy | 73 lm/W |
| Power Voltage | 100-242V |
| Power Factor | 0.85 |
| Lifetime | 40000H(L70) |
| CCT | 3500K |
| CRI | 85 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

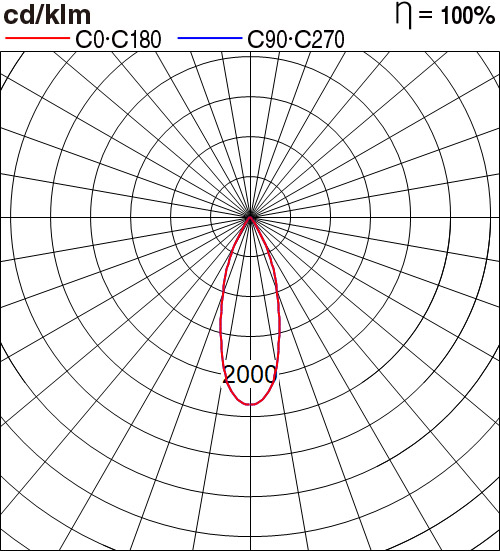

| Beam Angle | 12deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -5°C - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

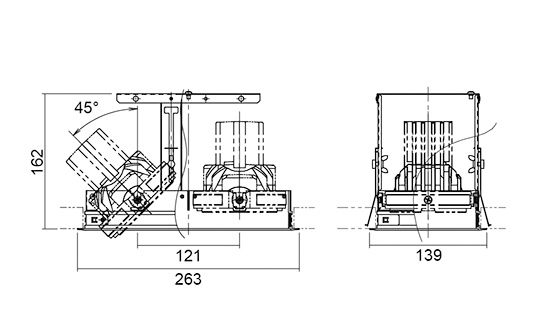

| Dimensions | 263mm*162mm |
| Weight | |
| Body | Alumunium Die Casting |
| Reflector | |
| Diffuser | Polycarbonate |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
