NNP20200031
- Certificates & Standards
| Type of Luminaire | Downlight |
|---|---|
| Adjustable DL (ASEAN) | |
| Adjustable DL | |
| Set Model No. | NNP20200031 |
| Type of Luminaire | Downlight |
|---|---|
| Adjustable DL (ASEAN) | |
| Adjustable DL | |
| Set Model No. | NNP20200031 |
| Type of Light Source | LED |
|---|---|
| Power Input | 3W |
| System Lumen Output | 225 lm |
| System Efficacy | 75 lm/W |
| Power Voltage | 110-240V |
| Power Factor | |
| Lifetime | 15000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 35deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | 90mm |

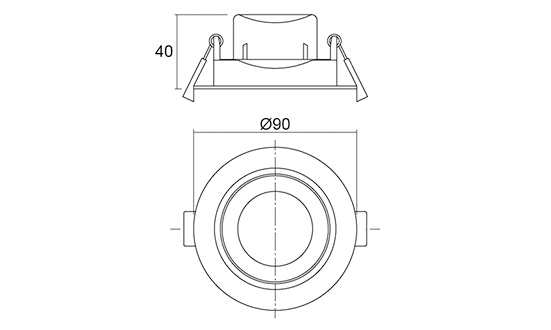

| Dimensions | 90mm*40mm |
| Weight | |
| Body | Polybutylene Terephthalate [PBT] |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
