NNP82512
- Certificates & Standards
| Type of Luminaire | Batten |
|---|---|
| Standard Batten (Trade) | |
| Tube & Fixture Set | |
| Set Model No. | NNP82512 |
| Type of Luminaire | Batten |
|---|---|
| Standard Batten (Trade) | |
| Tube & Fixture Set | |
| Set Model No. | NNP82512 |
| Type of Light Source | LED |
|---|---|
| Power Input | 8W |
| System Lumen Output | 800 lm |
| System Efficacy | 100 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 20000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 135deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 30°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

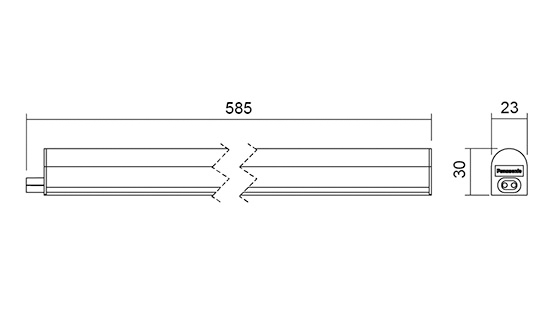

| Dimensions | 23mm*585mm*30mm |
| Weight | 0.105 kg |
| Body | Plastic |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
