NNP77141DL
- Certificates & Standards
| Type of Luminaire | Downlight |
|---|---|
| Glareless + Adjustable DL | |
| Glareless Family (Adjustable Glaress DL) | |
| Set Model No. | NNP77141DL |
| Type of Luminaire | Downlight |
|---|---|
| Glareless + Adjustable DL | |
| Glareless Family (Adjustable Glaress DL) | |
| Set Model No. | NNP77141DL |
| Type of Light Source | |
|---|---|
| Power Input | 50W |
| System Lumen Output | 3900 lm |
| System Efficacy | 78 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 3000K |
| CRI | 90 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

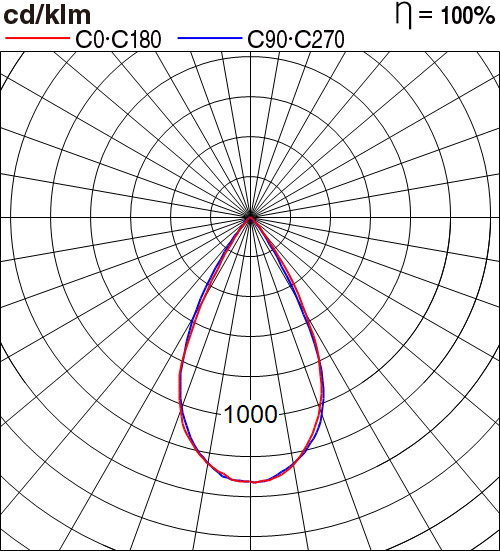

| Beam Angle | 55deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 30°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

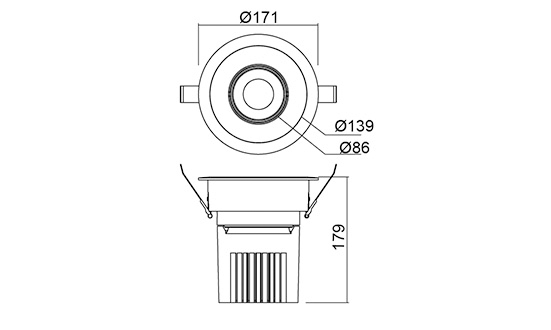

| Dimensions | 171mm*179mm |
| Weight | 1.76 kg |
| Body | Aluminum |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks | White Trim |
Spec and certification may change without notice.
