NSP115SD28
- Certificates & Standards
| Type of Luminaire | Street Light |
|---|---|
| Solar Street Light | |
| Integrated - ECO Series | |
| Set Model No. | NSP115SD28 |
| Type of Luminaire | Street Light |
|---|---|
| Solar Street Light | |
| Integrated - ECO Series | |
| Set Model No. | NSP115SD28 |
| Type of Light Source | LED |
|---|---|
| Power Input | 60W |
| System Lumen Output | 9000 lm |
| System Efficacy | 150 lm/W |
| Power Voltage | |
| Power Factor | |
| Lifetime | 50000H(L70) |
| CCT | 5000K |
| CRI | 70 |
| SDCM | |
| Input Frequency | |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 120deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 66 |
| IK code | |
| Ambient Temperature Range | 5 - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | |
| Cut Out Size | |

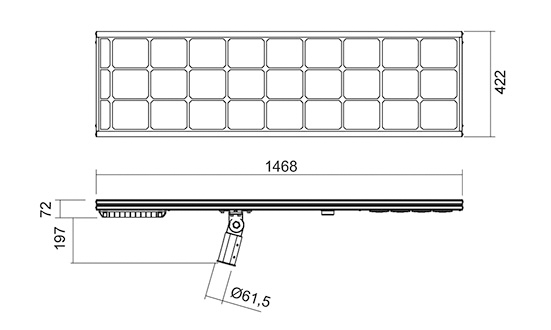

| Dimensions | 422mm*1468mm*72mm |
| Weight | |
| Body | Painted Aluminum Die Cast |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
