NNV90161CE1A
- Certificates & Standards
- TISI
| Type of Luminaire | LED Lamp |
|---|---|
| Magnet Module | |
| Magnet Module | |
| Set Model No. | NNV90161CE1A |
| Type of Luminaire | LED Lamp |
|---|---|
| Magnet Module | |
| Magnet Module | |
| Set Model No. | NNV90161CE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 24W |
| System Lumen Output | 2880 lm |
| System Efficacy | 120 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 30000H(L70) |
| CCT | 6500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 165deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

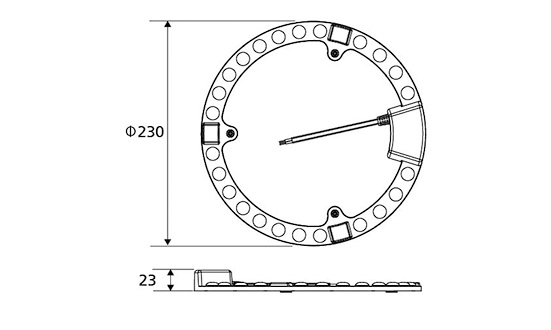

| Dimensions | 230mm*230mm*23mm |
| Weight | 0.1 kg |
| Body | PC(White) |
| Reflector | |
| Diffuser | |
| Trim | PC(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
