NYV00029BE1A
- Certificates & Standards
- RoHs / TISI
| Type of Luminaire | Floodlight |
|---|---|
| Standard Floodlight (Trade) | |
| 300W | |
| Set Model No. | NYV00029BE1A |
| Type of Luminaire | Floodlight |
|---|---|
| Standard Floodlight (Trade) | |
| 300W | |
| Set Model No. | NYV00029BE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 300W |
| System Lumen Output | 36000 lm |
| System Efficacy | 120 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.95 |
| Lifetime | 30000H(L70) |
| CCT | 5700K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

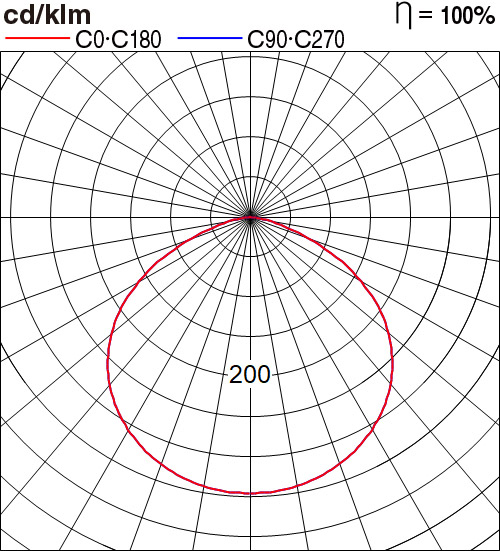

| Beam Angle | 110deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 66 |
| IK code | |
| Ambient Temperature Range | -20 - 35°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅰ |
| THDi | <10% |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

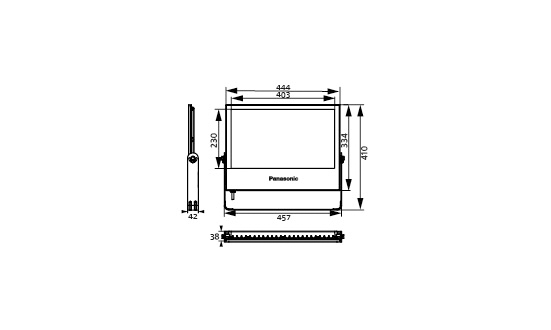

| Dimensions | 334mm*457mm*42mm |
| Weight | 4.3 kg |
| Body | ADC12(Black) |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | Amber Glass(Transparent) |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
