BPT390M865TH
- Certificates & Standards
- RoHs / CISPR15 / TISI
| Type of Luminaire | LED Tube |
|---|---|
| G13 | |
| Tube | |
| Set Model No. | BPT390M865TH |
| Type of Luminaire | LED Tube |
|---|---|
| G13 | |
| Tube | |
| Set Model No. | BPT390M865TH |
| Type of Light Source | LED |
|---|---|
| Power Input | 24W |
| System Lumen Output | 3900 lm |
| System Efficacy | 163 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.95 |
| Lifetime | 50000H(L70) |
| CCT | 6500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

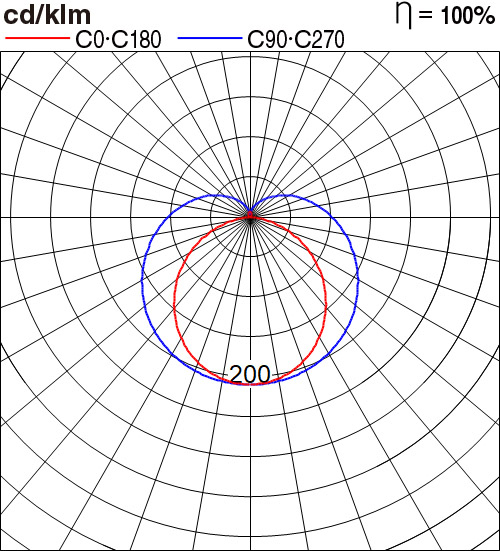

| Beam Angle | 180deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -20 - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | <10% |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |

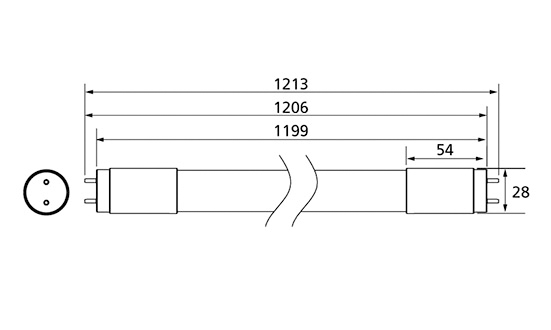

| Dimensions | 28mm*1213mm*28mm |
| Weight | 0.205 kg |
| Body | PC(White) |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
