NNV79965WE1A
- Certificates & Standards
- CB / RoHs / TISI
| Type of Luminaire | Downlight |
|---|---|
| Panel Light | |
| Panel light (Hero) | |
| Set Model No. | NNV79965WE1A |
| Type of Luminaire | Downlight |
|---|---|
| Panel Light | |
| Panel light (Hero) | |
| Set Model No. | NNV79965WE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 12W |
| System Lumen Output | 960 lm |
| System Efficacy | 80 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | |
| CCT | 6500K |
| CRI | 80 |
| SDCM | <6 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 110deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | L-N:0.5kV |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | 160mm |

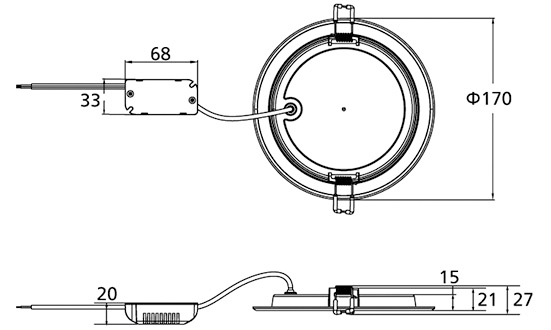

| Dimensions | W170mm*L170mm*H23mm |
| Weight | 0.113 kg |
| Body | PP(White) |
| Reflector | |
| Diffuser | |
| Trim | PP(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | Cut-out size:155-160 |
Spec and certification may change without notice.
