LDTCH50DG3A7
- Certificates & Standards
- CB / RoHs
| Type of Luminaire | LED Lamp |
|---|---|
| T type (Standard) | |
| Low Wattage E27 | |
| Set Model No. | LDTCH50DG3A7 |

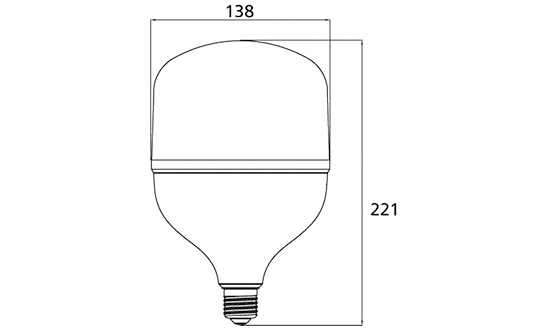

Dimension and Materials
Features
พื้นผิวเปล่งแสงขนาดใหญ่
ด้วยความสูงของเปลือกหอยที่สูงกว่า 10% เมื่อเทียบกับรุ่นก่อนหน้าซึ่งช่วยให้พื้นที่กว้างขวางขึ้น
ผลความร้อนที่ดี
โดยใช้ที่อยู่อาศัย PA และ AL1060 หลอดไฟแสดงผลความร้อนที่ดี

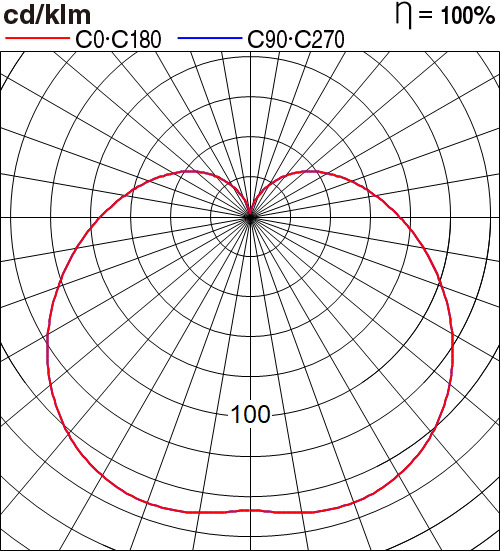

Photometric Chart
| Type of Luminaire | LED Lamp |
|---|---|
| T type (Standard) | |
| Low Wattage E27 | |
| Set Model No. | LDTCH50DG3A7 |
Product Data
| Type of Light Source | LED |
|---|---|
| Power Input | 50W |
| System Lumen Output | 5000 lm |
| System Efficacy | 100 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 15000H(L70) |
| CCT | 6500K |
| CRI | 80 |
| SDCM | ?6 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 180deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | |
| IK code | |
| Ambient Temperature Range | 5 - 40°C |
| Surge Protection | L-N:1KV |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |
| Dimensions | L138mm*H221mm |
| Weight | 0.194 kg |
| Body | PA+AL1060(White) |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | PC(White) |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | LOVEEYE |
Spec and certification may change without notice.
