LDACL09LG2A7
- Certificates & Standards
- CISPR15 / CR
| Type of Luminaire | LED Lamp |
|---|---|
| A type (Standard) | |
| Low Wattage E27 | |
| Set Model No. | LDACL09LG2A7 |

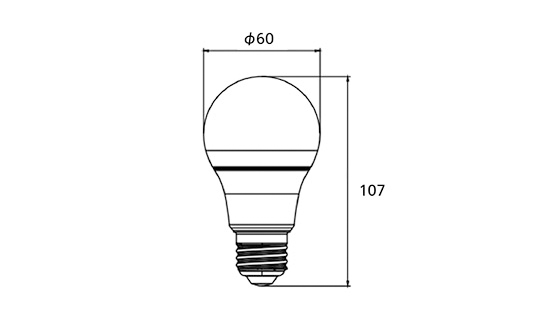

Dimension and Materials
Features
Chịu được phạm vi điện áp rộng hơn
Thích ứng từ 170V đến 240V, bóng đèn A điện áp rộng có thể đối phó với biến động điện áp thông thường.
Sáng hơn và tiết kiệm năng lượng hơn
Công suất sử dụng phổ biến sáng hơn và tối đa 122lm / W so với thế hệ bóng đèn thông thường.
Photometric Chart
| Type of Luminaire | LED Lamp |
|---|---|
| A type (Standard) | |
| Low Wattage E27 | |
| Set Model No. | LDACL09LG2A7 |
Product Data
| Type of Light Source | LED |
|---|---|
| Power Input | 9W |
| System Lumen Output | 875 lm |
| System Efficacy | 97 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.5 |
| Lifetime | 15000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | <6 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |
| Dimensions | L60mm*H107mm |
| Weight | 0.055 kg |
| Body | PP(White) |
| Reflector | |
| Diffuser | PC(White) |
| Trim | PC(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
