NFV80325WM1A
- Certificates & Standards
- RoHs
| Type of Luminaire | Strip Light |
|---|---|
| Standard Strip Light (Trade) | |
| Strip Light | |
| Set Model No. | NFV80325WM1A |
| Type of Luminaire | Strip Light |
|---|---|
| Standard Strip Light (Trade) | |
| Strip Light | |
| Set Model No. | NFV80325WM1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 10W |
| System Lumen Output | 850 lm |
| System Efficacy | 85 lm/W |
| Power Voltage | DC24V |
| Power Factor | |
| Lifetime | 35000H(L70) |
| CCT | 3000K |
| CRI | 80 |
| SDCM | <5 |
| Input Frequency | |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 180deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -5 - 35°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | |

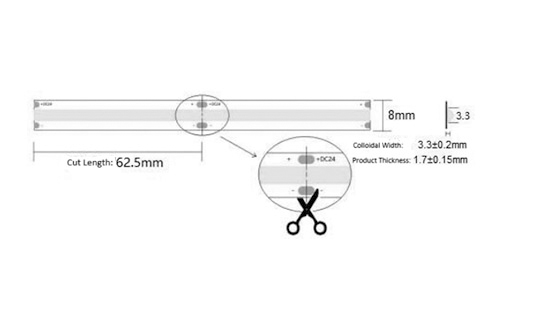

| Dimensions | 8mm*5000mm*2mm |
| Weight | 0.067 kg |
| Body | FPC(White) |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | Power Input : 10W/m |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
