NYV01009BE1A
- Certificates & Standards
- CB / RoHs
| Type of Luminaire | Floodlight |
|---|---|
| Standard Floodlight (Pro) | |
| Ex | |
| Set Model No. | NYV01009BE1A |
| Type of Luminaire | Floodlight |
|---|---|
| Standard Floodlight (Pro) | |
| Ex | |
| Set Model No. | NYV01009BE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 50W |
| System Lumen Output | 7750 lm |
| System Efficacy | 155 lm/W |
| Power Voltage | 120-277V |
| Power Factor | 0.95 |
| Lifetime | 50000H(L70) |
| CCT | 5700K |
| CRI | 80 |
| SDCM | <6 |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

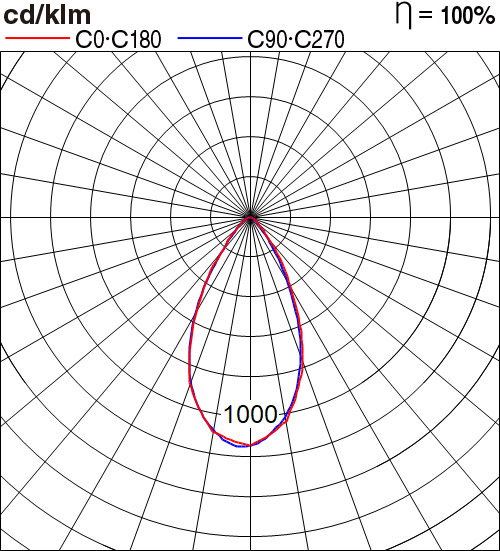

| Beam Angle | 60deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 66 |
| IK code | IK 08 |
| Ambient Temperature Range | -40 - 50°C |
| Surge Protection | L-N:6kV, L/N-G:10kV |
| Classification of Luminaries | Class Ⅰ |
| THDi | <15% |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | |

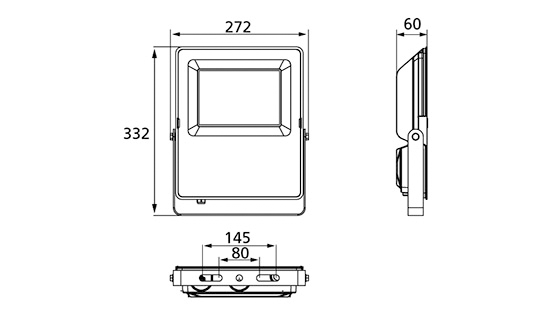

| Dimensions | W272mm*L332mm*H60mm |
| Weight | 2.5 kg |
| Body | ADC12(Black) |
| Reflector | |
| Diffuser | Glass |
| Trim | |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | Input current as of standard voltage (A):0.17-0.38, Surge resistant voltage:L-N:6KV, L/N-G:10KV |
Spec and certification may change without notice.
