PTZM03284
- Certificates & Standards
| Type of Luminaire | Baselight |
|---|---|
| System Ceiling Baselight | |
| High Efficacy Techzone (SLENDO TECH PLUS) | |
| Set Model No. | PTZM03284 |
| Type of Luminaire | Baselight |
|---|---|
| System Ceiling Baselight | |
| High Efficacy Techzone (SLENDO TECH PLUS) | |
| Set Model No. | PTZM03284 |
| Type of Light Source | LED |
|---|---|
| Power Input | 28W |
| System Lumen Output | 3500 lm |
| System Efficacy | 125 lm/W |
| Power Voltage | 240V |
| Power Factor | 0.9 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -10 - 45°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | <10% |
| Effective Projected Area | |
| Driver | Non-Integral |
| Cut Out Size | |

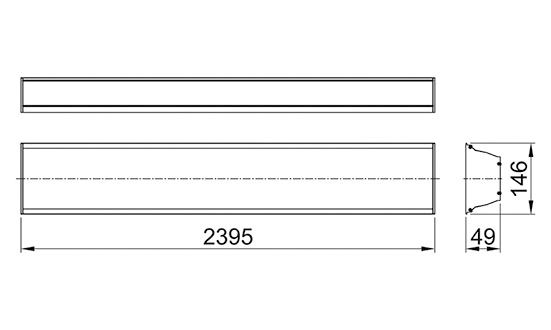

| Dimensions | 146mm*2395mm*49mm |
| Weight | 4.028 kg |
| Body | Aluminium Extrusion |
| Reflector | |
| Diffuser | PMMA |
| Trim | |
| Caseing | |
| Country of Origin | India |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
