PLHM10284
- Certificates & Standards
| Type of Luminaire | Baselight |
|---|---|
| Linear Light | |
| High Efficacy Linear Light (SLENDO ADV) | |
| Set Model No. | PLHM10284 |
| Type of Luminaire | Baselight |
|---|---|
| Linear Light | |
| High Efficacy Linear Light (SLENDO ADV) | |
| Set Model No. | PLHM10284 |
| Type of Light Source | LED |
|---|---|
| Power Input | 28W |
| System Lumen Output | 2940 lm |
| System Efficacy | 105 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.95 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |

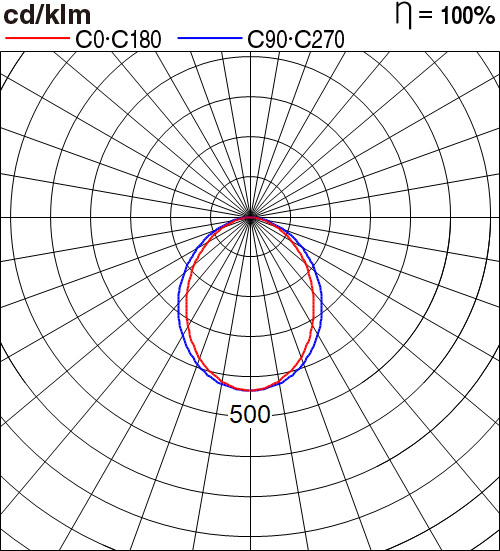

| Beam Angle | 120deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 0 - 45°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | <10% |
| Effective Projected Area | |
| Driver | External |
| Cut Out Size | |

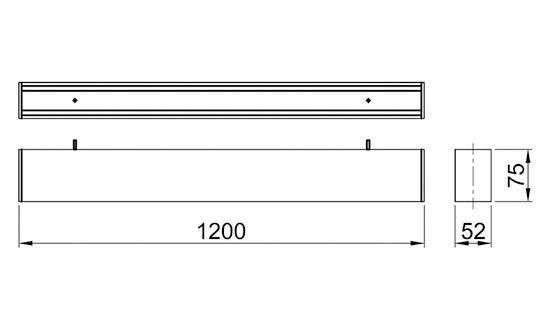

| Dimensions | 55mm*1200mm*75mm |
| Weight | 2.01 kg |
| Body | Aluminium Extrusion |
| Reflector | |
| Diffuser | PMMA |
| Trim | |
| Caseing | |
| Country of Origin | India |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
