KRGX0111648DW
- Certificates & Standards
| Type of Luminaire | Baselight |
|---|---|
| LGP | |
| KUU Series_FLOAT Square | |
| Set Model No. | KRGX0111648DW |

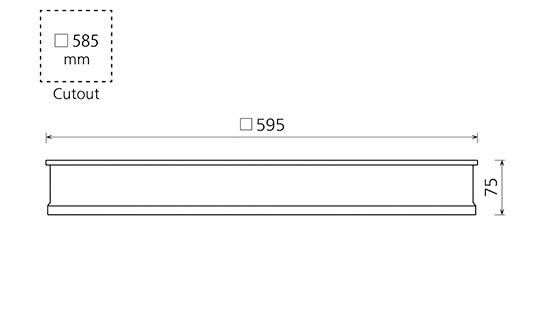

Dimension and Materials

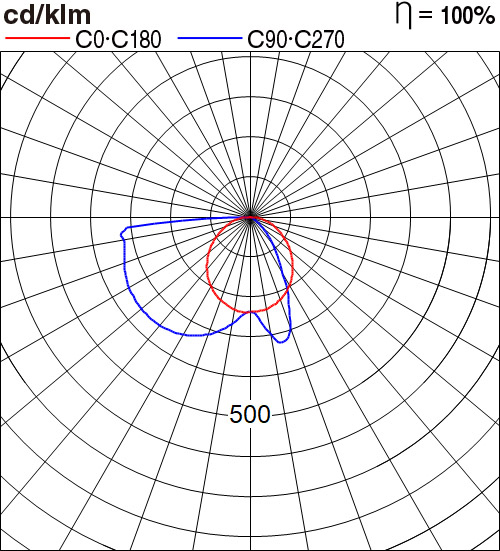

Photometric Chart
| Type of Luminaire | Baselight |
|---|---|
| LGP | |
| KUU Series_FLOAT Square | |
| Set Model No. | KRGX0111648DW |
Product Data
| Type of Light Source | LED |
|---|---|
| Power Input | 16W |
| System Lumen Output | 1120 lm |
| System Efficacy | 70 lm/W |
| Power Voltage | 240V |
| Power Factor | >0.90 |
| Lifetime | 50000H(L70) |
| CCT | 4000K |
| CRI | 80 |
| SDCM | <3 |
| Input Frequency | 50Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | -10 - 45°C |
| Surge Protection | 4KV |
| Classification of Luminaries | |
| THDi | <20 |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |
| Dimensions | W595mm*L595mm*H75mm |
| Weight | 5.1 kg |
| Body | CRCA |
| Reflector | |
| Diffuser | PMMA |
| Trim | |
| Caseing | |
| Country of Origin | India |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
