NNP85251
- Certificates & Standards
- RoHs
| Type of Luminaire | Baselight |
|---|---|
| Panel Light | |
| Panel Light | |
| Set Model No. | NNP85251 |

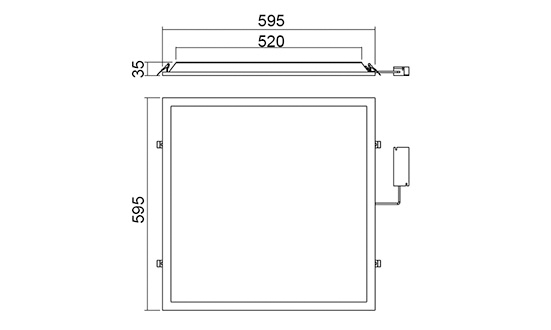

Dimension and Materials

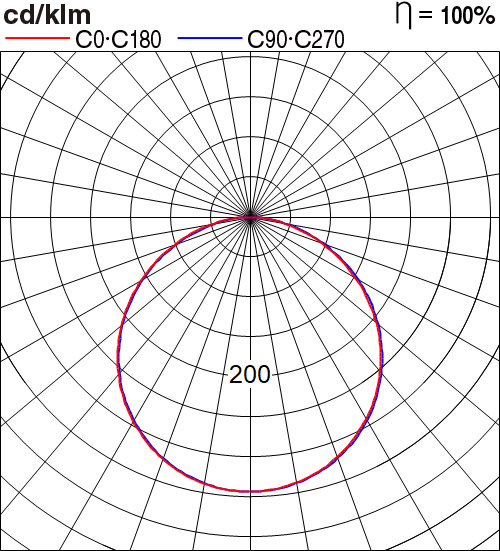

Photometric Chart
| Type of Luminaire | Baselight |
|---|---|
| Panel Light | |
| Panel Light | |
| Set Model No. | NNP85251 |
Product Data
| Type of Light Source | LED |
|---|---|
| Power Input | 40W |
| System Lumen Output | 4400 lm |
| System Efficacy | 110 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.9 |
| Lifetime | 40000H(L70) |
| CCT | 6500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | 100deg. |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 40°C |
| Surge Protection | |
| Classification of Luminaries | |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |
| Dimensions | W595mm*L595mm*H35mm |
| Weight | 1.24 kg |
| Body | Steel With White Painted |
| Reflector | |
| Diffuser | |
| Trim | |
| Caseing | |
| Country of Origin | Indonesia |
| Brand | Panasonic |
| Remarks |
Spec and certification may change without notice.
