HHGLT0424W88
- Certificates & Standards
- CB / RoHs / CR
| Type of Luminaire | Portable Lamp |
|---|---|
| Desk Lamp | |
| Desk Lamp | |
| Set Model No. | HHGLT0424W88 |

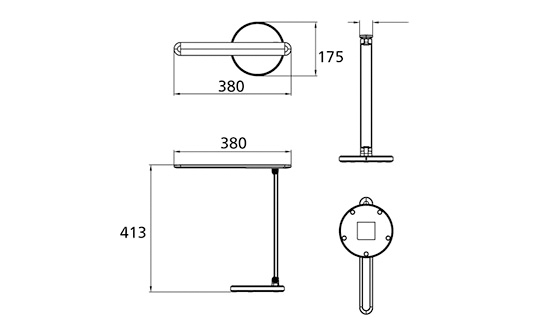

Dimension and Materials
Photometric Chart
| Type of Luminaire | Portable Lamp |
|---|---|
| Desk Lamp | |
| Desk Lamp | |
| Set Model No. | HHGLT0424W88 |
Product Data
| Type of Light Source | LED |
|---|---|
| Power Input | 9W |
| System Lumen Output | 700 lm |
| System Efficacy | 78 lm/W |
| Power Voltage | 220-240V |
| Power Factor | 0.6 |
| Lifetime | 20000H(L70) |
| CCT | 4000K |
| CRI | 95 |
| SDCM | ?6 |
| Input Frequency | 50/60Hz |
| Dimming | Dimmable |
| Dimming Range | 10-100% |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 5 - 35°C |
| Surge Protection | 0.5kV |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | |
| Dimensions | W170mm*L380mm*H410mm |
| Weight | 0.62 kg |
| Body | ABS+PC(White) |
| Reflector | |
| Diffuser | ABS+PC(White) |
| Trim | ABS+PC(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks | LOVEEYE |
Spec and certification may change without notice.
